● Solid and stable construction type
● Workshop saw for the accurate cutting of various angles or mitres on picture frames, architraves, etc.

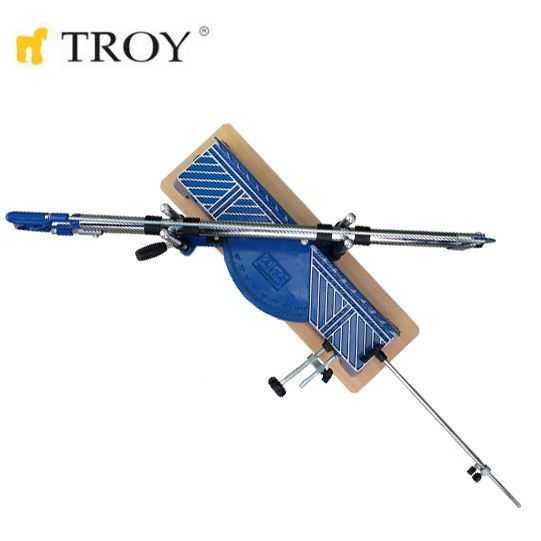

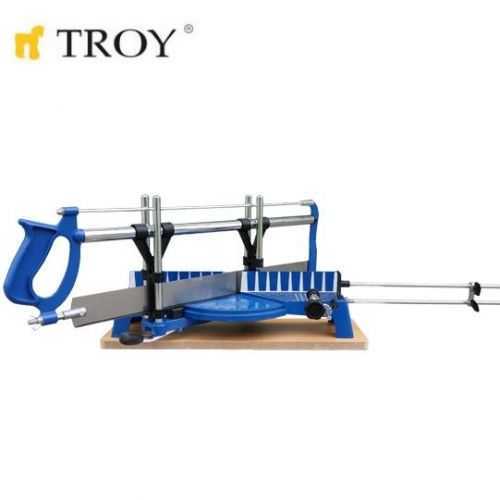

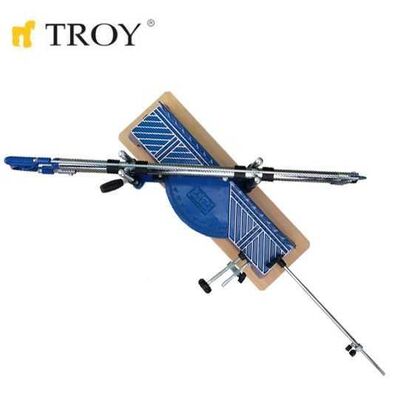

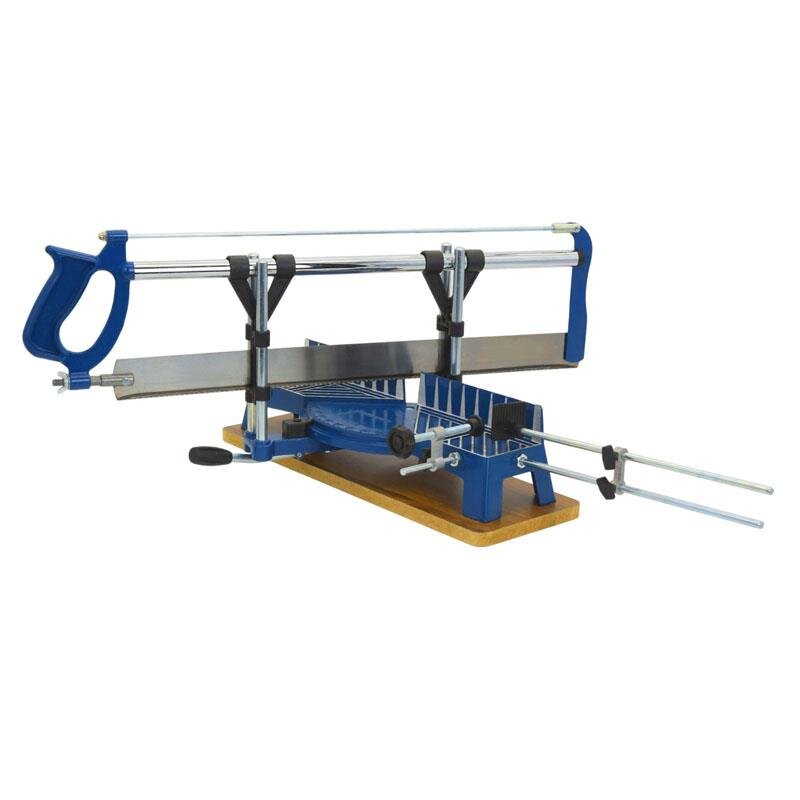

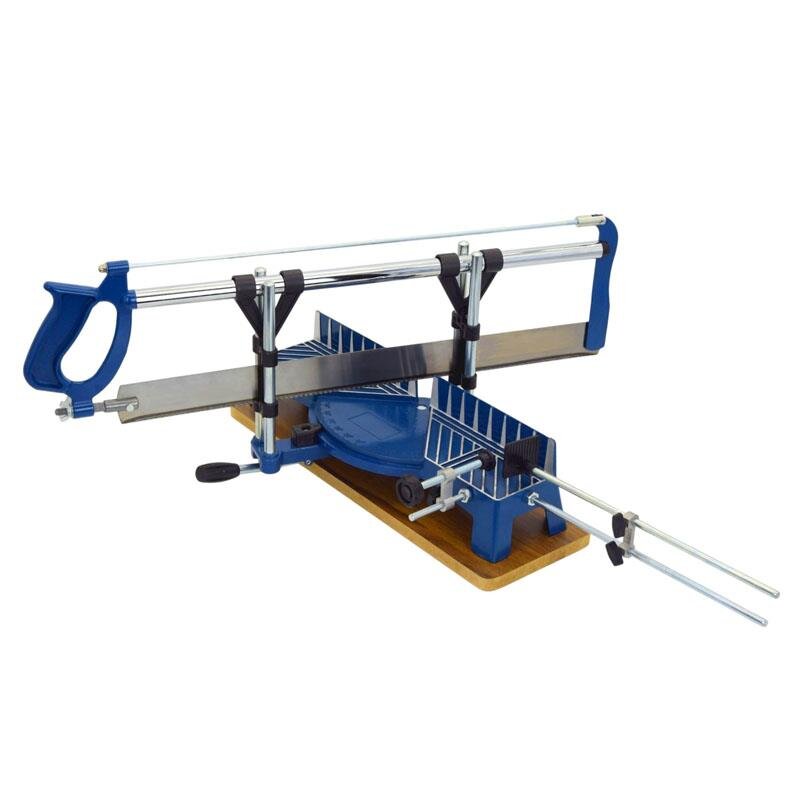

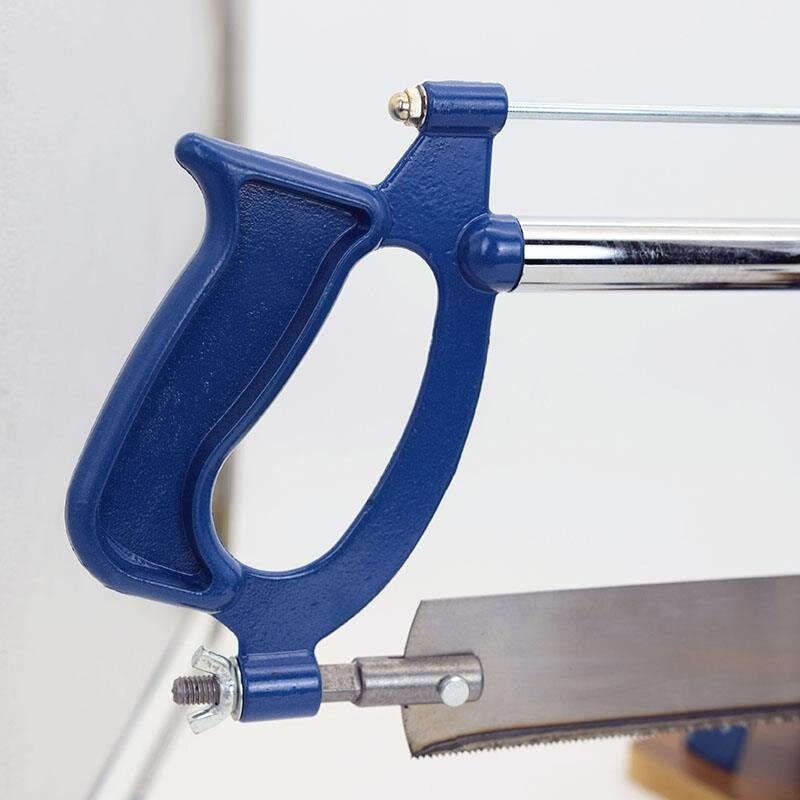

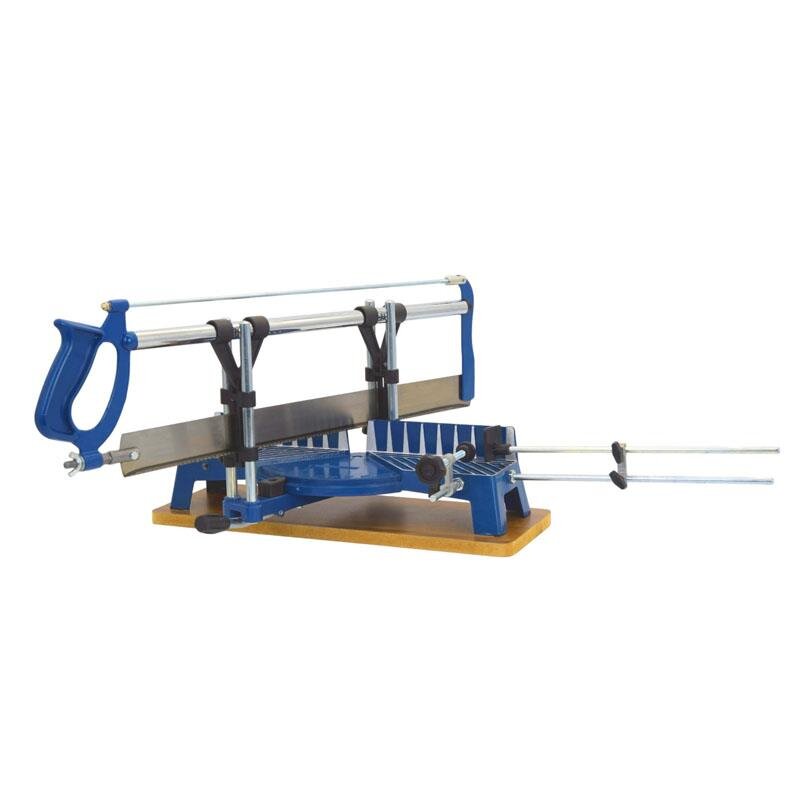

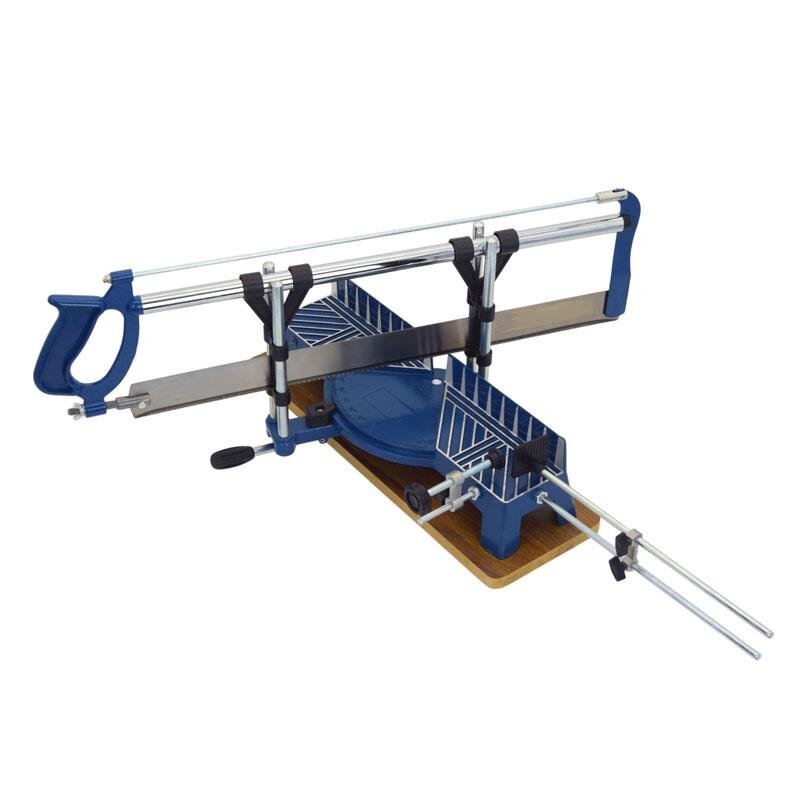

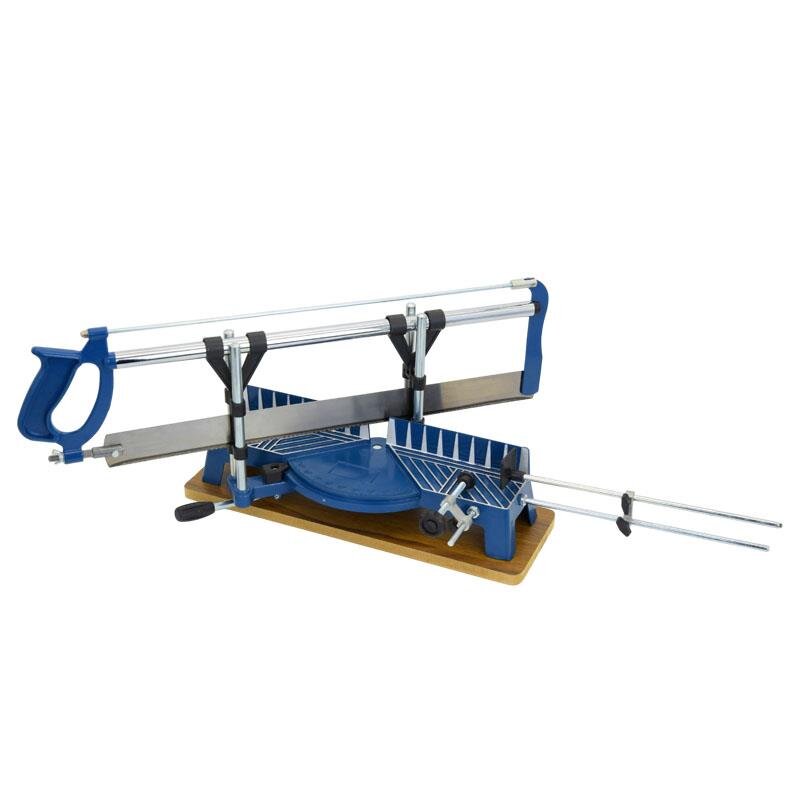

● Comprising saw with plastic handle, 14 tpi wood cutting blade, solid one piece diecast aluminium saw table, four solid chrome plated guide rods with adjustable length stop, material vice clamp, extra material vice clamp for use with short workpieces, cutting depth regulator and scale on base.

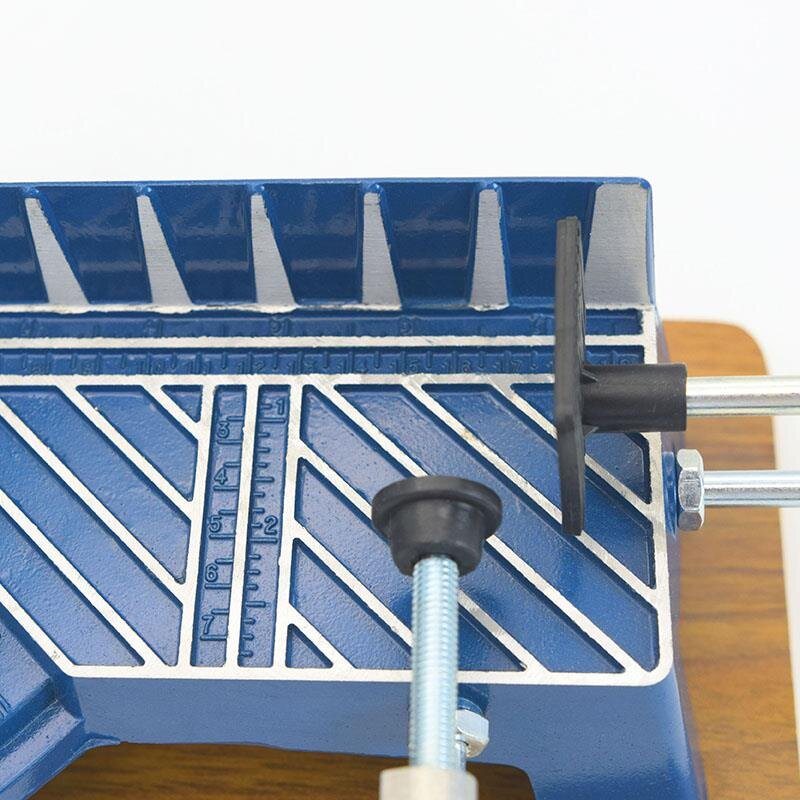

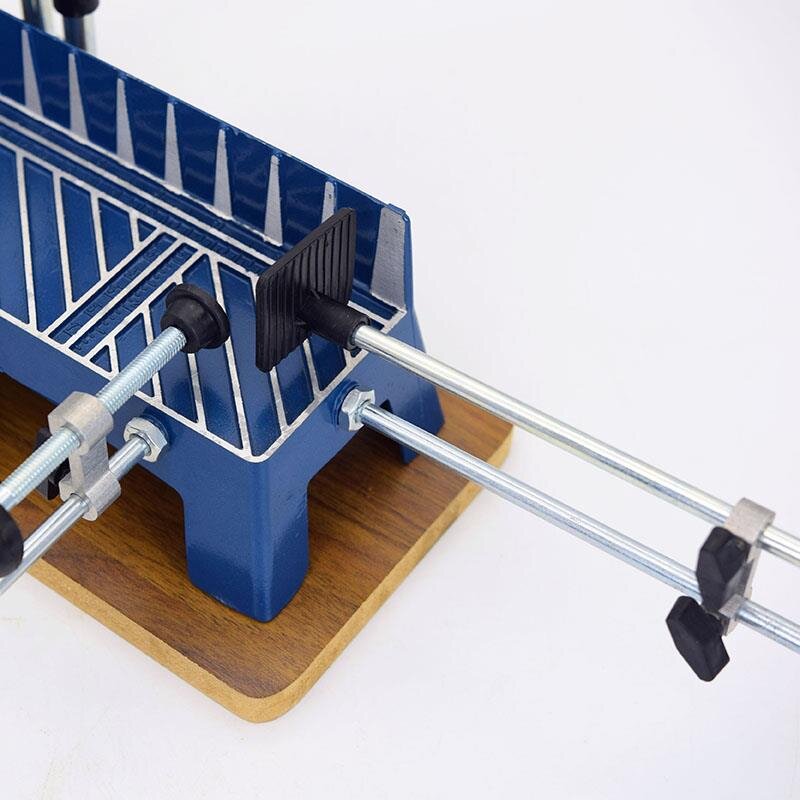

● Basic plate made of sheet Steel with anti-slipping rubber feet cast iron body with adjustable length stop on the right or left
● Cutting depth adjustment

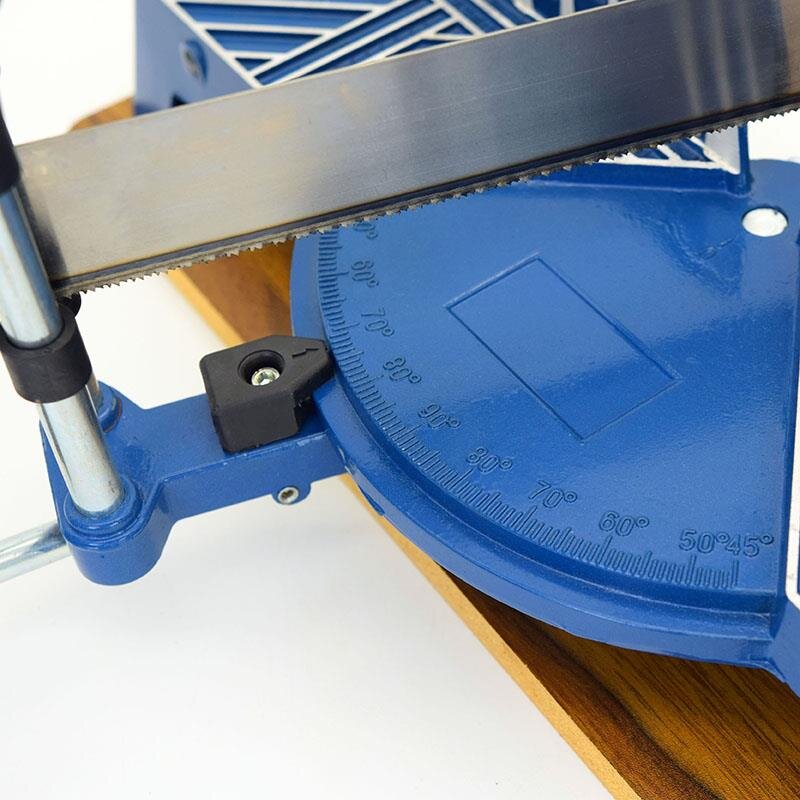

● Angular adjustment 45° to 90° left and right
● Four guide bars ensure an exact and firm guidance of saw frame
● The saw can simply be hanged on the guidance rods by the doubled bladed spring frame
● Including an universal sawblade (wood, lm and plastic) with hardened tooth
● Display carton.
● Technical Data
Cutting Width at 45°: 75-110 mm
Cutting Width at 90°: 125-160 mm
Cutting Height: 100-120 mm
Table Length: 300-400 mm
Blade Size: 420x40 to 550x45 mm
