General Features
● High tensile and shear strength, fast-curing, two-component plastic adhesive
● Provides excellent adhesion especially on rigid plastics (PVC, ABS, fiberglass)
● Suitable for bonding rigid plastics to each other or to materials such as aluminum, steel, ceramic, glass, natural stone, etc.
● Resistant to impact; suitable for both static and dynamic loads
● Maximum gap-filling capacity of up to 5 mm
● High viscosity ensures excellent adhesion performance even on vertical surfaces
● Suitable for automotive bumper repair, bodywork repair, and mirror bonding
● Ideal for repairing headlights and tail lights, as well as all metal parts of vehicles
● Apply within 10 minutes; begins to set in 4–6 minutes and can be sanded and painted after 60 minutes
Surface Preparation
● For optimal adhesion, surfaces must be clean, dry, and free of grease; mechanical roughening (e.g., sanding) is recommended
● Remove dirt, loose particles, and contaminants; surfaces must be clean and dry
● Apply quickly to only one side of the surface to be bonded or filled
Application

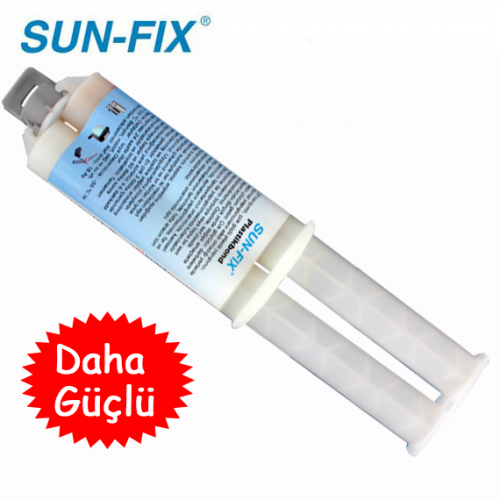

● Dispense equal amounts of both components by pushing the dual cartridge through both nozzles
● Mix thoroughly until a homogeneous color is achieved
● Apply quickly to only one side of the surface to be bonded or filled
● After opening, discard the first 5 cm of material due to possible inconsistencies in reused cartridge tips
● Pot life refers to a 10 ml mixture at room temperature; larger quantities will result in faster curing
Technical Data
● Type: Liquid epoxy
● Color after curing: Milky white
● Mixing ratio (resin / hardener, automatic): 1:1
● Density of mixture: 0.98 – 1.02 g/cm³
● Viscosity of mixture: 40,000 – 60,000 mPa·s
● Max. gap-filling capacity: 5 mm
● Processing temperature: +10°C to +40°C
● Curing temperature: +18°C
● Pot life (10 g mixture, 20°C): 10 minutes
● Handling strength (35% strength): 40 minutes
● Functional strength (50% strength): 60 minutes
● Final strength (100% strength): 12 hours
Mechanical Strength of Cured Epoxy
● Lap shear strength (DIN EN 1465, thickness: 1.5 mm)
Sandblasted steel (1.0338): 23 MPa
Sandblasted stainless steel (V2A): 22 MPa
Sandblasted aluminum: 20 MPa
Rigid PVC (roughened): 12 MPa
CFRP (carbon fiber reinforced plastic): 22 MPa
ABS: 7 MPa
PC (polycarbonate): 11 MPa
GFRP (glass fiber reinforced plastic): 21 MPa
PMMA (acrylic): 9 MPa
Polyamide 6.6: 1 MPa
● Temperature resistance: -55°C to +125°C
● Dielectric strength (DIN EN 60243-1, 20°C): 21 kV/mm
Storage Conditions
● Shelf life is 12 months when stored unopened in a dry environment at +18°C to +25°C
● Protect from moisture and direct sunlight
● Shelf life may decrease to up to 6 months under improper storage conditions
● Storing opened products in a cool environment helps extend shelf life
