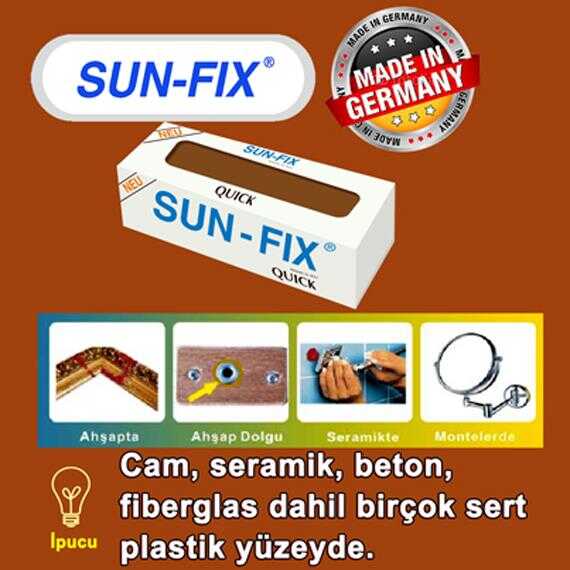

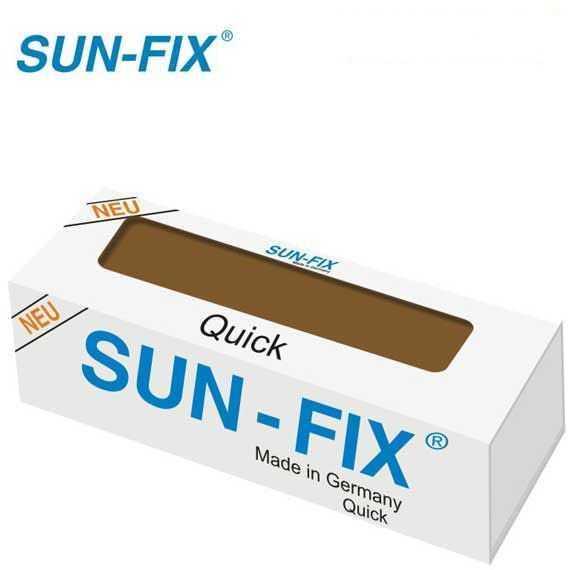

SUN-FIX Epoxy Adhesive, QUICK
Features
● Epoxy resin-based, copper-filled repair compound.
● Highly effective for rapidly sealing cracks and holes, stopping leaks, and repairing surface damage.
● The system has a short application time of approximately 3 minutes and can also be used on damp or wet surfaces.
● Provides a fast, durable, and permanent solution for applications on dry, wet, and humid surfaces.
● Can be used as a repair and coating material for:
● Pipe elbows, copper gutters, and sheets,
● Water heaters, hot and cold pipes,
● Refrigeration and air conditioning equipment, water tanks,
● Metals, wooden surfaces, glass, ceramics, concrete, fiberglass, and rigid plastics.
● Once cured, it can be mechanically processed, drilled, sanded, and painted without the need for a primer.
● Not suitable for use with rubber and elastomers.
Surface Preparation
● For optimal adhesion, surfaces must be clean and free from grease.
● Foreign materials and loose particles must be removed, and the surface should be roughened with suitable sandpaper if possible.
● After mechanical abrasion, the surface must be cleaned of loose particles.
Application
● The product is two-component and the components are concentric.
● Cut off the required amount of material.
● Mix both components until a homogeneous color is achieved.
● To ease mixing and reduce viscosity, the putty can be warmed to room temperature prior to application.
● Apply quickly to the surface to be bonded or filled.
● In each application, gaps up to a maximum of 15 mm can be filled; larger gaps can be filled through multiple applications.
● Application time is based on a 10 g mixture at room temperature (20°C).
● Preparing larger quantities will shorten the curing time.
● An increase in ambient temperature accelerates the curing process.
● Temperatures below +16°C significantly extend working and curing times.
● At temperatures below +5°C, no reaction occurs and the mixture will not cure.
Technical Specifications
● Mixing ratio (resin / hardener): 1:1
● Density of mixture: 1.9 g/cm³
● Max. gap filling: 15 mm
● Application temperature: +15 to +40°C
● Curing temperature: +6 to +40°C
● Working time (10 g mixture, 20°C): 5 min
● Handling strength (35% strength): 10 min
● Mechanical load capacity (80% strength): 60 min
● Full cure (100% strength): 24 hours
● Compressive strength (DIN EN ISO 604): 55 MPa
● Tensile strength (DIN EN ISO 4624): 7 MPa
● Hardness (Shore D; DIN ISO 7619): 85
● Temperature resistance: -50°C to +120°C, short-term up to +150°C
Storage
● Shelf life is 18 months when stored unopened in a dry environment at room temperature (approx. +20°C).
● Keep away from moisture and direct sunlight.
● Shelf life may be reduced if stored under conditions outside those specified above.
● Storage below +5°C or in environments with continuous temperature fluctuations may cause crystallization.
● Crystallization caused by improper storage or transportation conditions can be eliminated by heating (max. +50°C).
● Once opened, the shelf life is reduced.
