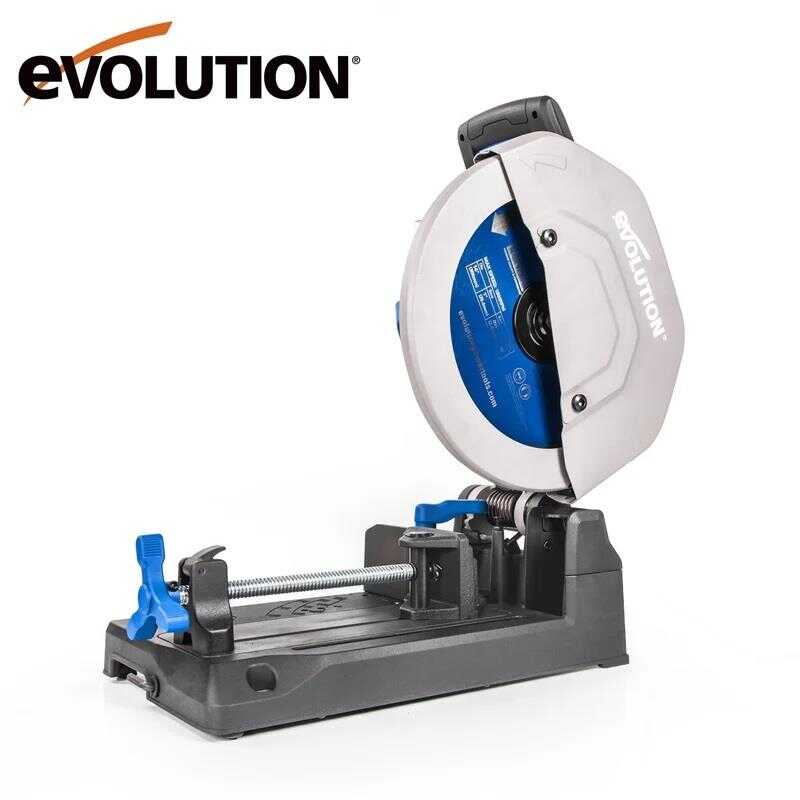

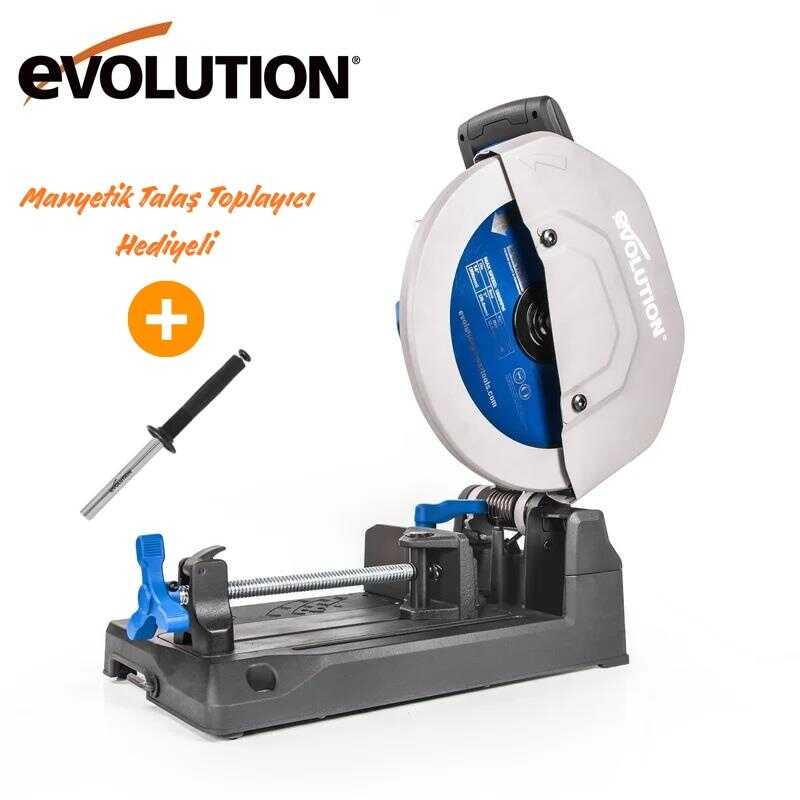

Evolution 084-0003 S355CPS Metal Cutting Chop Saw With Metal Cutting TCT Blade, 355mm

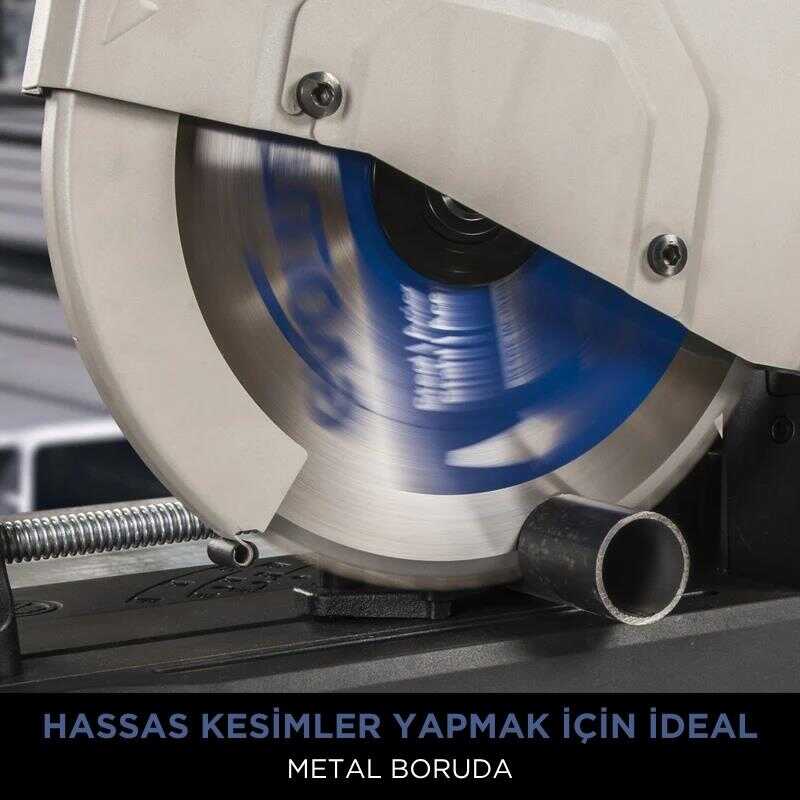

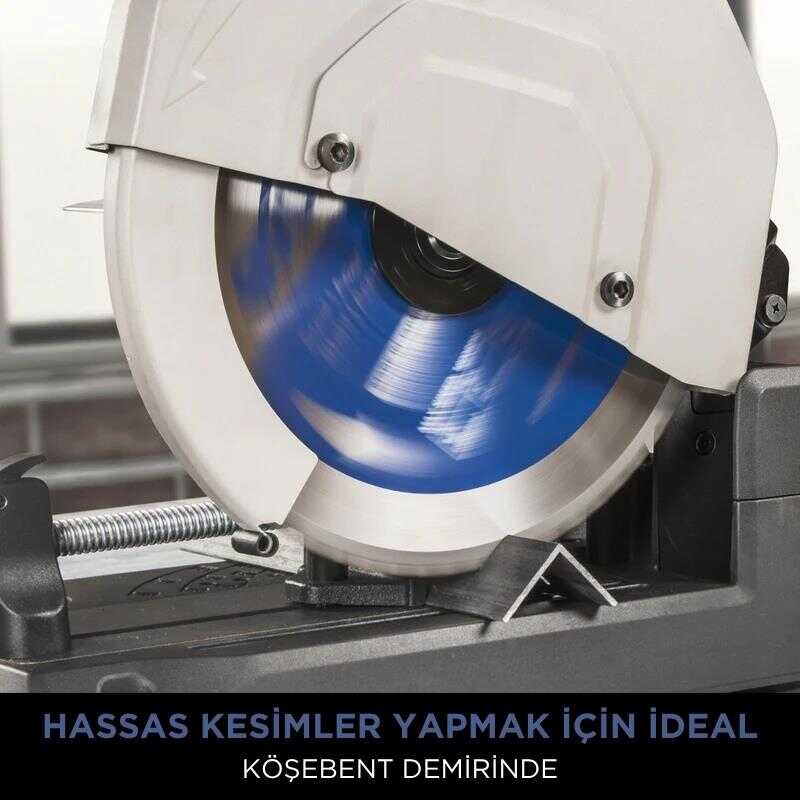

● The S355CPS Metal Cutting Chop Saw is ideal for making accurate cuts in box section, angle iron, pipe, & plate. With a powerful 2,200W motor and our advanced Metal Cutting TCT blade it cuts much faster than competing saws of similar size, saving you time and energy, and allowing you to move onto your next workpiece at lightning speed.

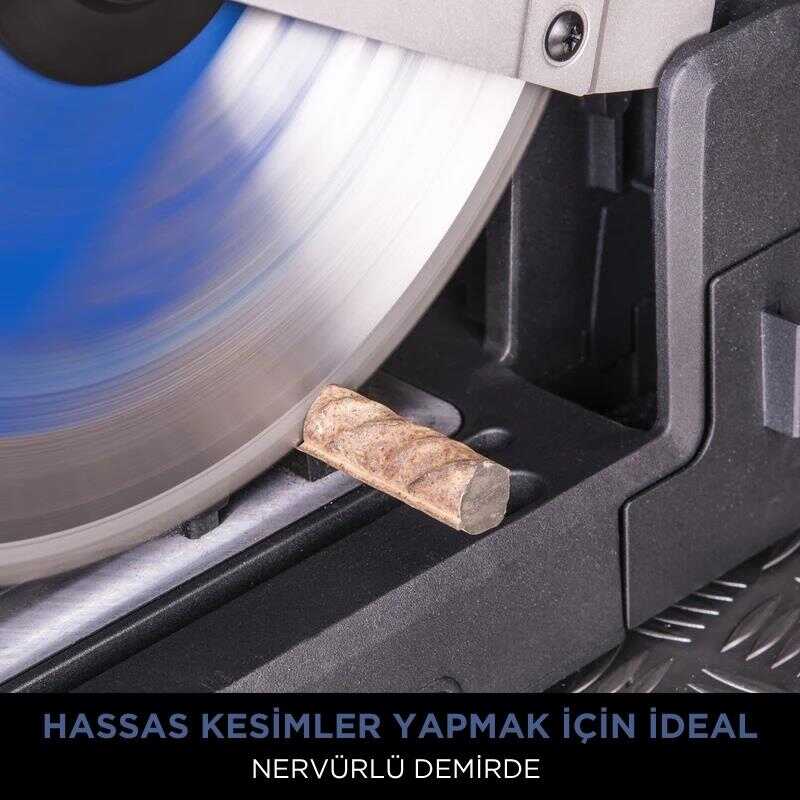

● The S355CPS is capable of far more precise cuts than bandsaws or plasma cutters - which can produce rough, uneven results unsuitable for many uses - leaving an instantly workable finish that is ready to weld straight from the machine. Cuts come off the saw cool to the touch, instead of scalding hot, and it produces virtually no sparks, making it safer, faster, cleaner and easier to use than abrasive wheel cutters.
● Are you sick of waiting for the bandsaw to finish your big cuts? Had enough of abrasive wheels giving you unusable pieces and having to clean up every cut before you can start welding? Then it’s time for the Evolution S355CPS Metal Cutting Chop Saw. Faster, more accurate cuts that are ready to weld straight off the saw, with a 130mm maximum cut depth from its 355mm carbide-tipped blade.

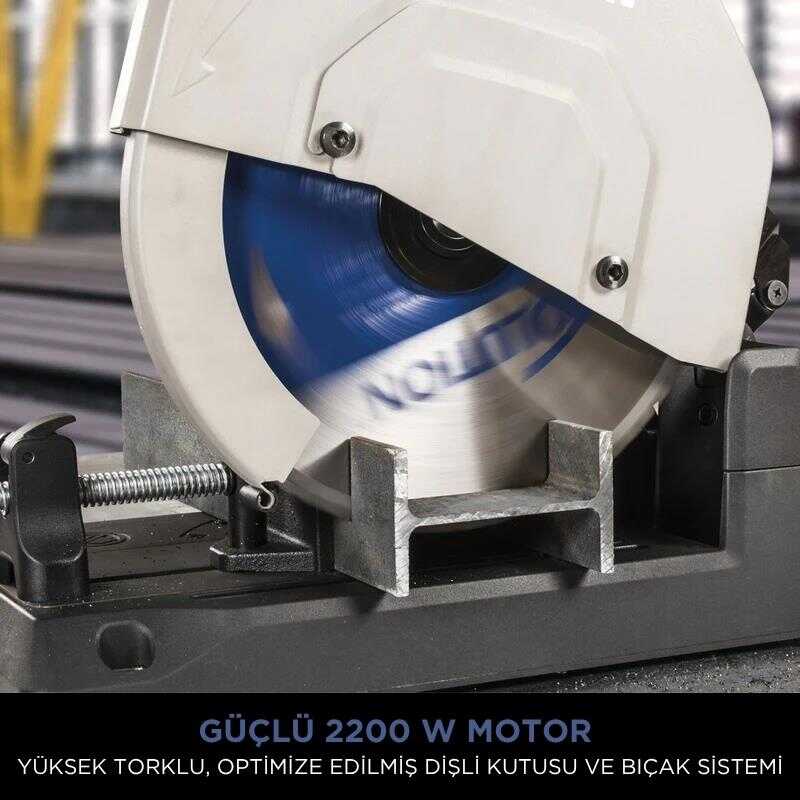

● Powerful 2,200W motor for fast, clean cuts.

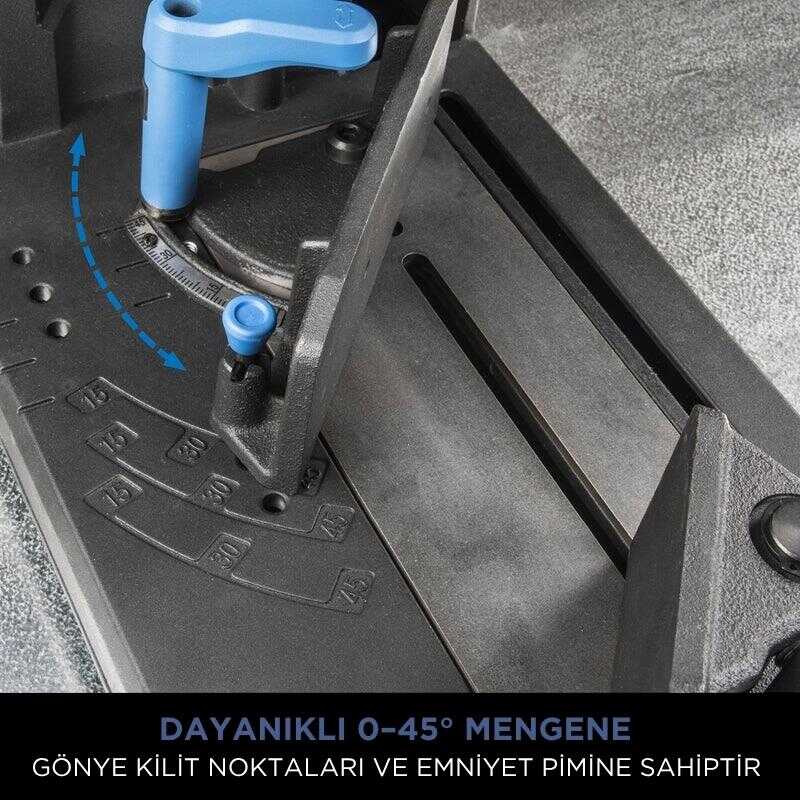

● Accurate & durable cast steel vice with 0° - 45° mitre capacity & locking pin.

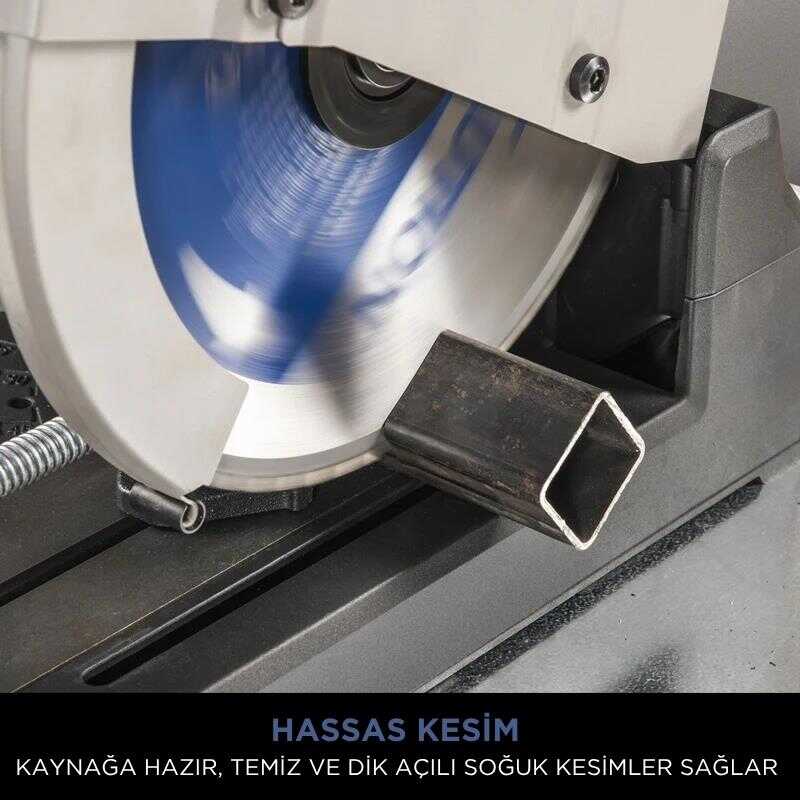

● Precise, accurate cuts that require no clean up for welding.
● Reliable construction, heavy-duty cast aluminium base with integrated wear plate & bench mounting holes.

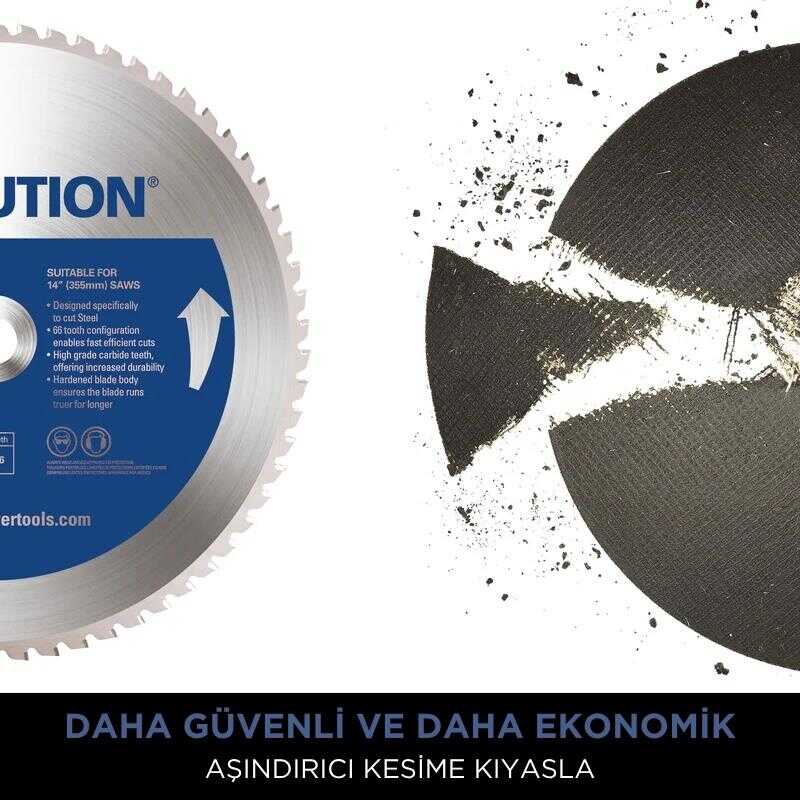

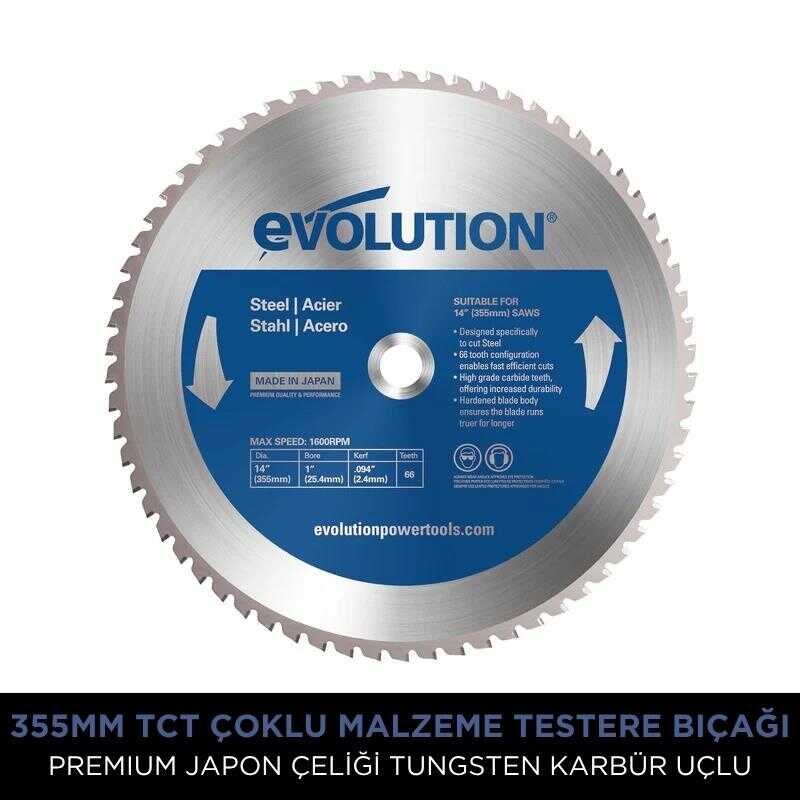

● 355mm 66T Mild steel cutting TCT blade included, longer lasting and cleaner than abrasive cutting.

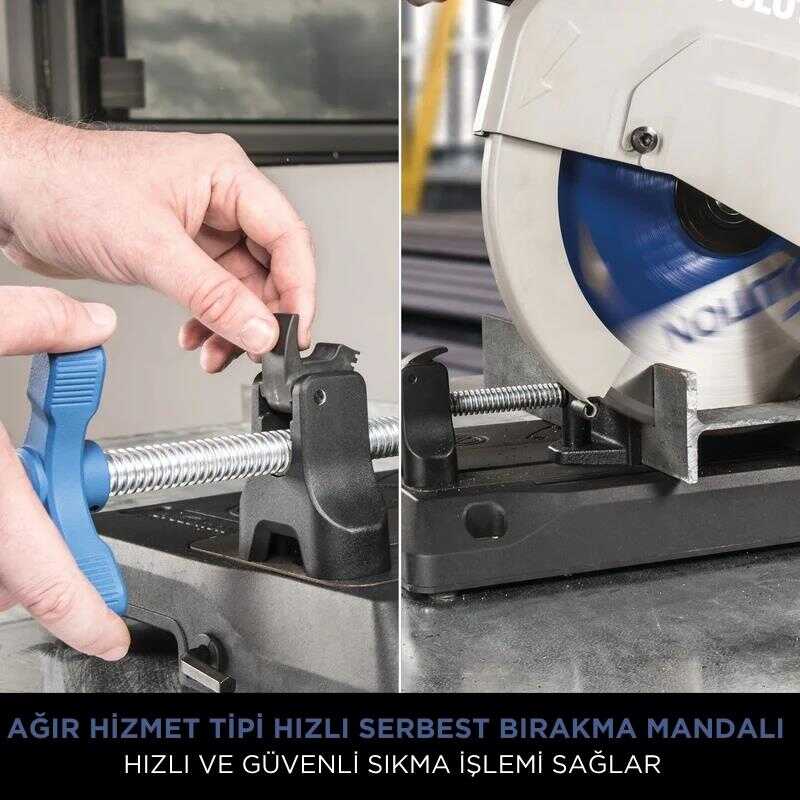

● Quick-release vice with robust square-threaded rod for fast & secure clamping.

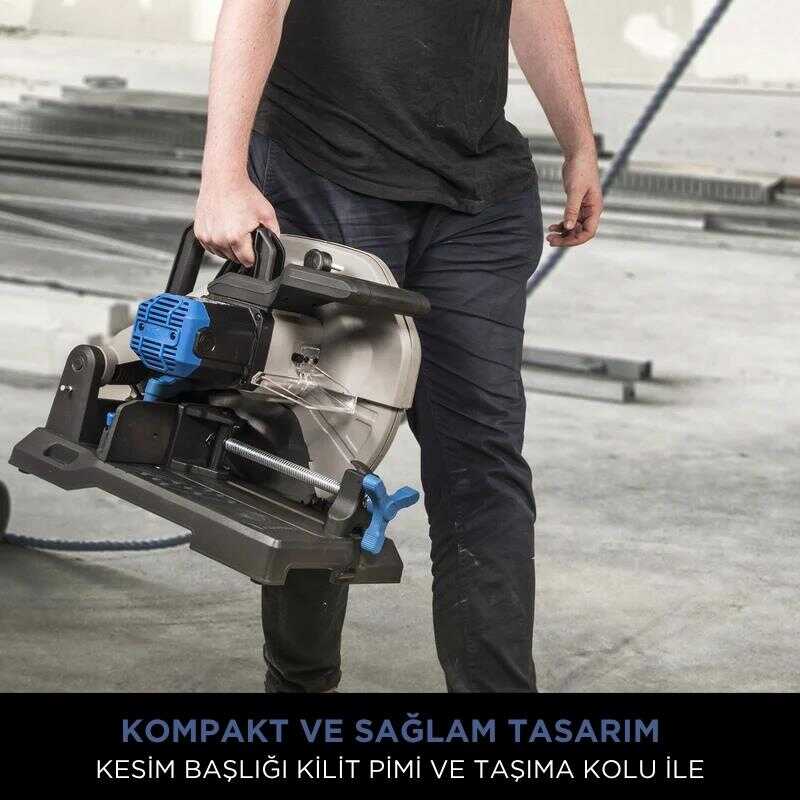

● Compact design with a head lock down pin & carry handle for easy transportation.
● Chip collection tray for a cleaner, safer working environment.

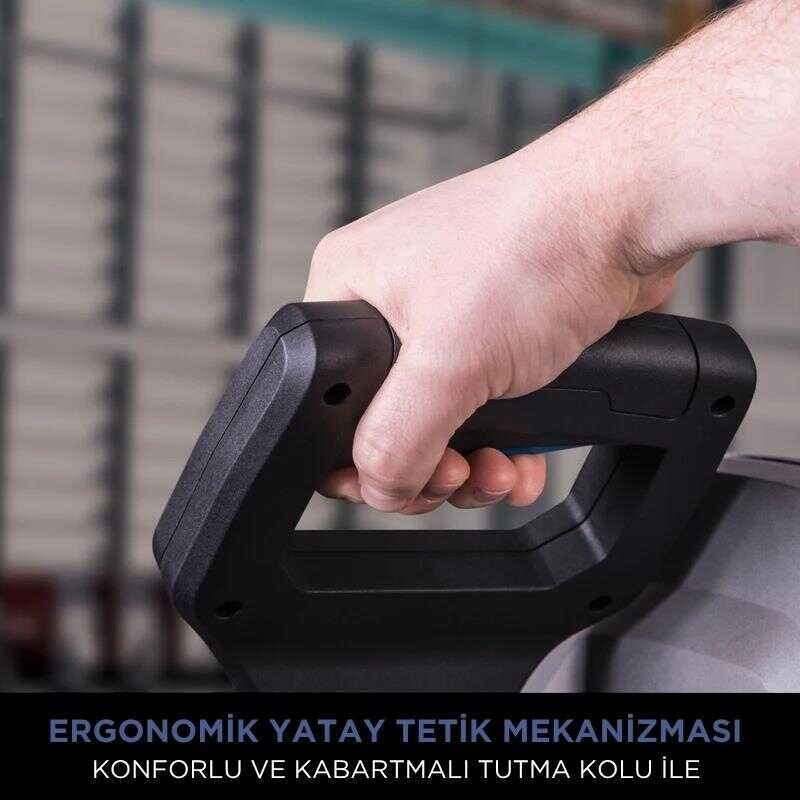

● Ergonomic, ambidextrous trigger with comfortable textured grip.

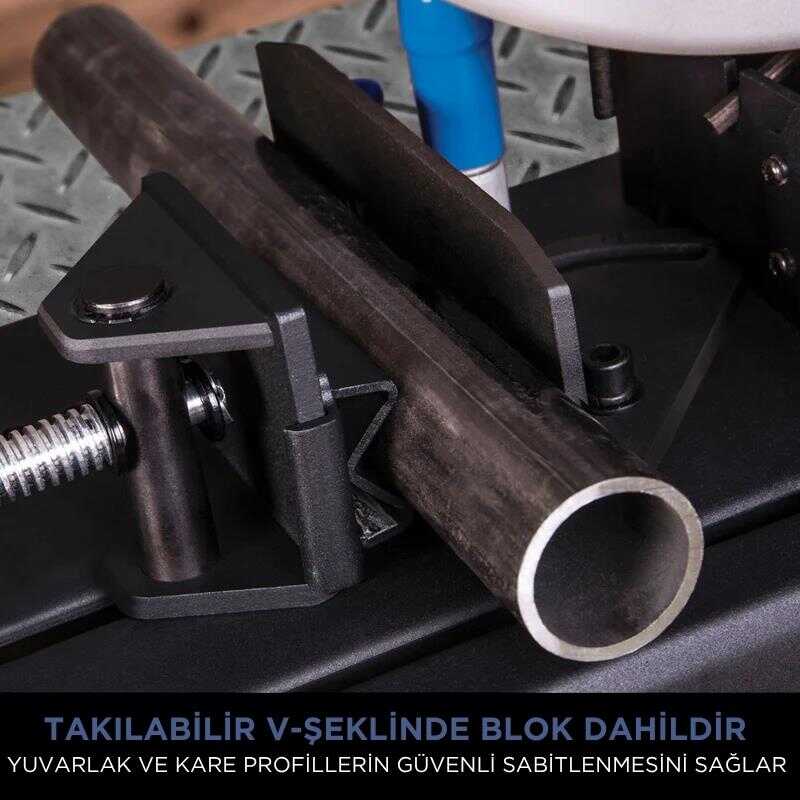

● Attachable ‘v’ shape block included for secure clamping of round & square tube.

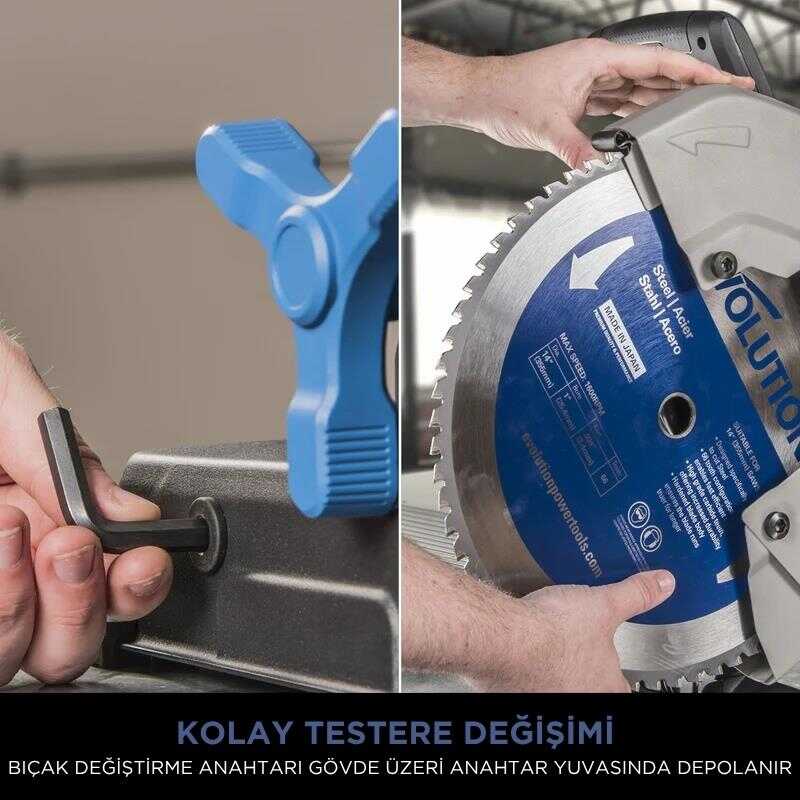

● Easy blade change with integrated tool storage.

Specifications
● Motor (240V 50Hz): 2200W
● Speed No Load: 1550 min-1
● Max. Bevel (Left): 45°
● Cable Length: 3m
● Blade Dia.: 355mm
● No. of Teeth: 66
● Bore: 25.4mm / 1 In.
● Kerf: 2.4mm

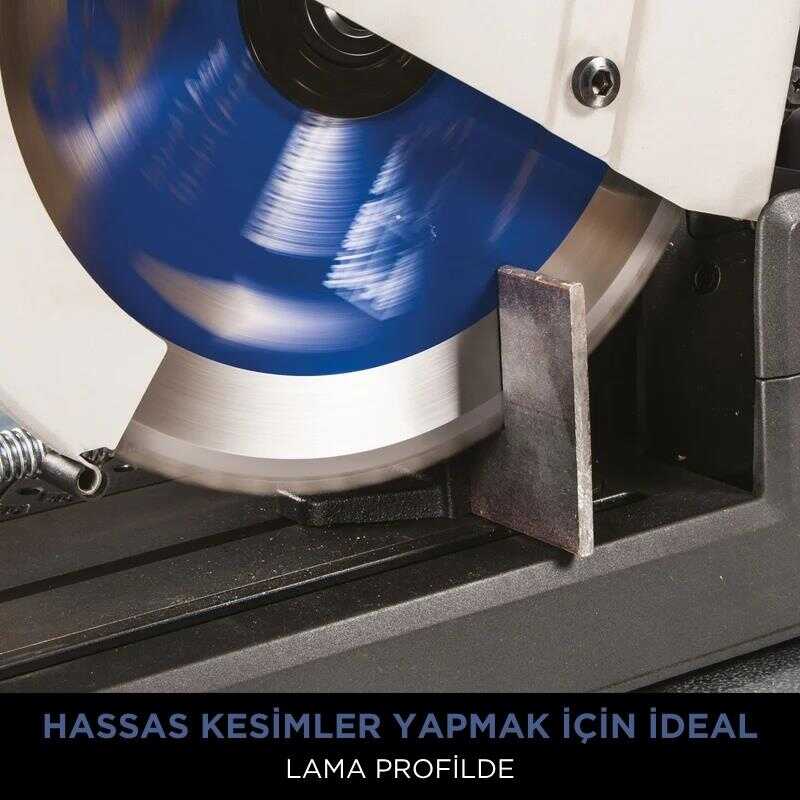

● Mild Steel Plate (Max Thickness): 12mm
● Stainless Steel Plate (Max Thickness): 5mm
● Square Tube at 90° (Mild Steel): 120 x 120mm
● Square Tube at 45° (Mild Steel): 89 x 89mm
● Rectangle Tube at 90° (Mild Steel): 95 x 180mm
● Rectangle Tube at 45° (Mild Steel): 78 x 110mm
● Round Tube at 90° (Mild Steel): Ø 130mm
● Round Tube at 45° (Mild Steel): Ø 105mm
● Minimum Cut Off Piece Length: 8 mm
● Packaging Dimensions: 470 x 575 x 374mm
● Product Dimensions: 410 x 530 x 310mm
● Product Weight: 23.1 kg
● Packaged Weight: 27 kg
● Sound Pressure Level LPA: 94.9 dB(A) K:3dB(A)
● Sound Power Level LWA: 107.9 dB(A) K=3 dB(A)

Items Supplied
● 66 Tooth Mild Steel TCT Blade
● Hex Key 8mm (Blade Change)
● V-Block

Compatible With
GW355TCT-60 - 355mm Wood Blade
355mm Diamond Blade
355mm Mild Steel Cutting Blade
355mm 90T Stainless Cutting Blade
355mm Multi-material Cutting Blade
355mm Aluminium Cutting 80T Blade
