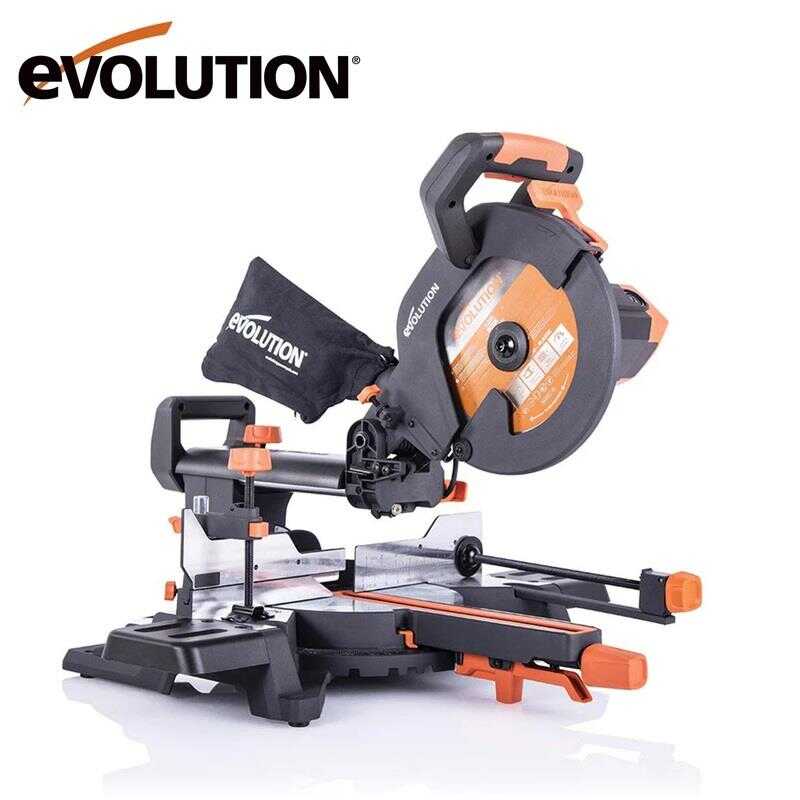

Evolution 052-0003A R255SMS+ Sliding Compound Mitre Saw, 255mm

● R255SMS+ Evolution Mitre Saw is built for accurate crosscut, bevel, mitre and trench cuts in wood, wood composite, plastics, and metal.
● Powered by a 2000W motor (240V), it comes with a 255mm tungsten carbide tipped (TCT) Multi-Material blade and has a 300mm x 80mm crosscut capacity and the ability to deliver cut accuracy within +/- 0.5˚, 0° - 45° bevel tilt and 50˚ - 50˚ mitre angles.
● Trade rated and approved the R255SMS+ compound mitre saw is the ultimate tool on the job site. Accuracy, power and reliability are at the forefront of its design.

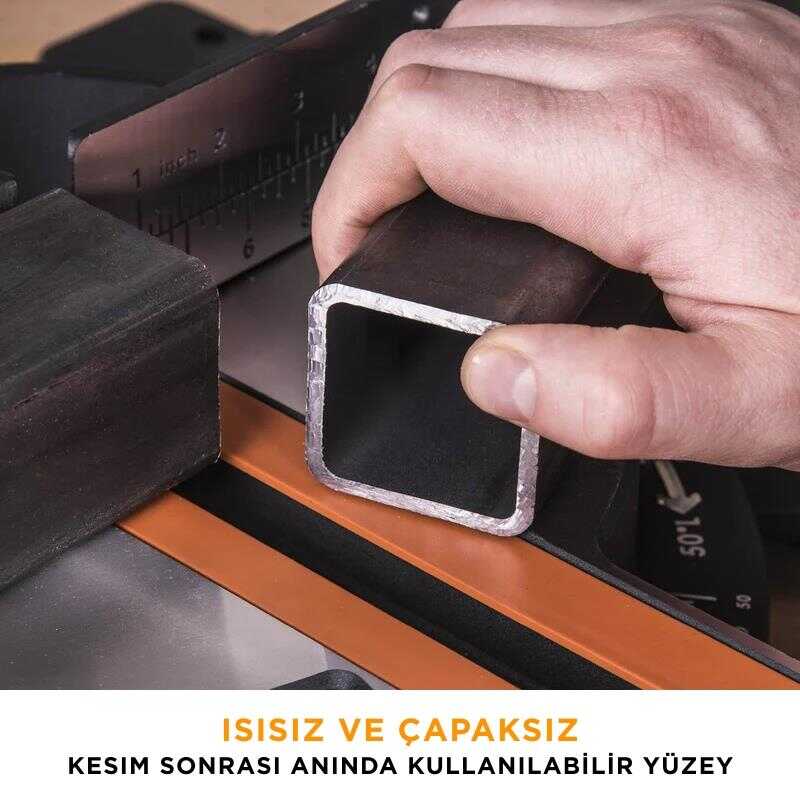

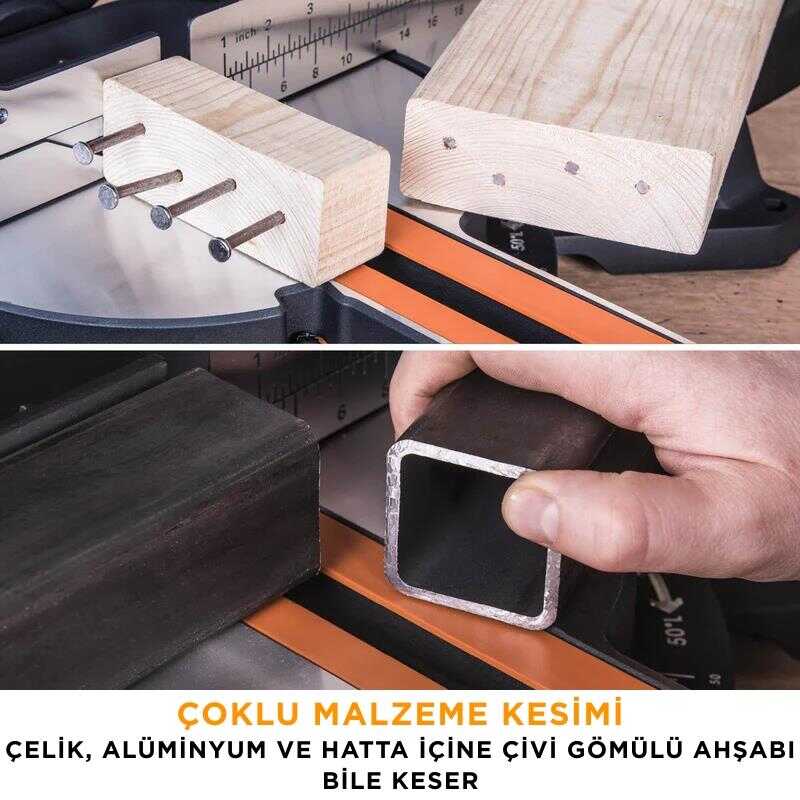

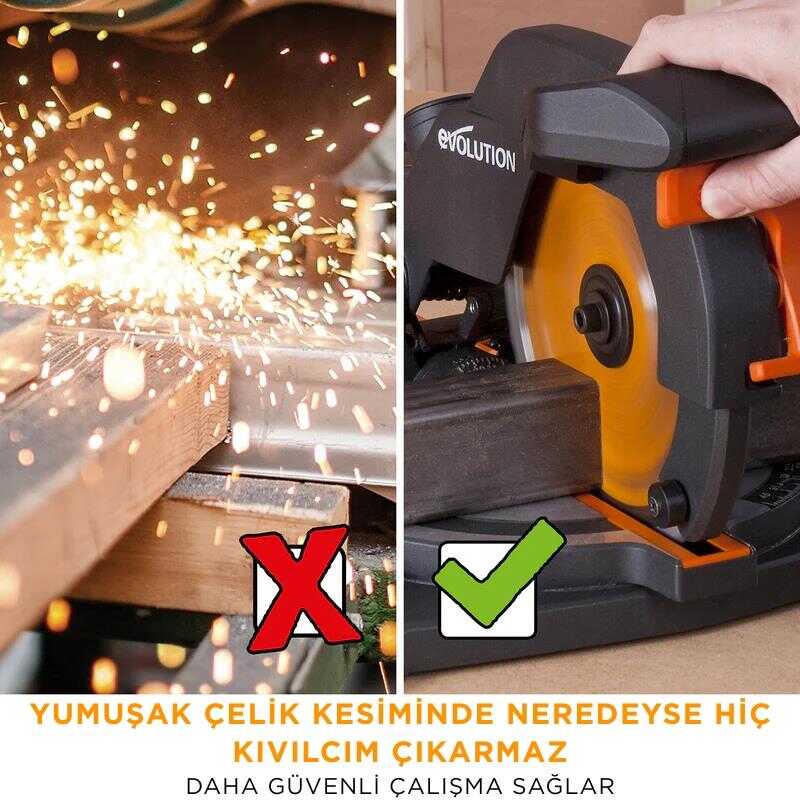

● Equipped to power through 6mm thick mild steel, and cut hardwood, laminate and even nail-embedded wood with precision. Pair it with the Evolution Mitre Saw Stand and you have a cutting station ready to tackle the biggest jobs on site or at home.
● A true workhorse with a max cross cut of 300mm x 80mm.
● Ready to cut almost anything with our Multi-Material blade.
● Can be used with any of our 255mm wood blades if you want a finer finish or faster cuts for those perfect crown mouldings and laser precise joints.

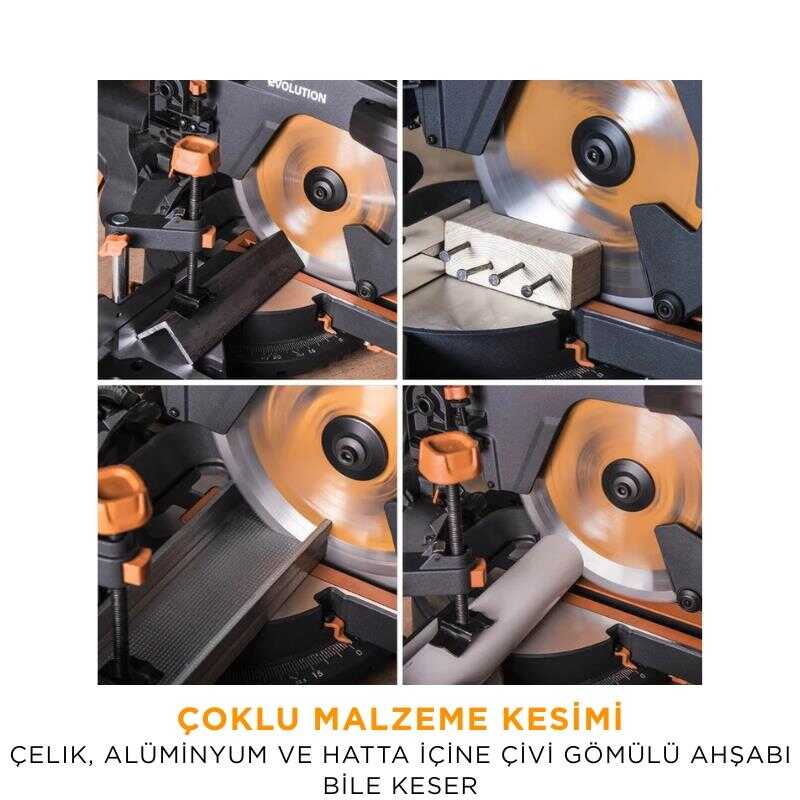

● Multi-Material cutting technology. One saw, one blade, cuts all.*

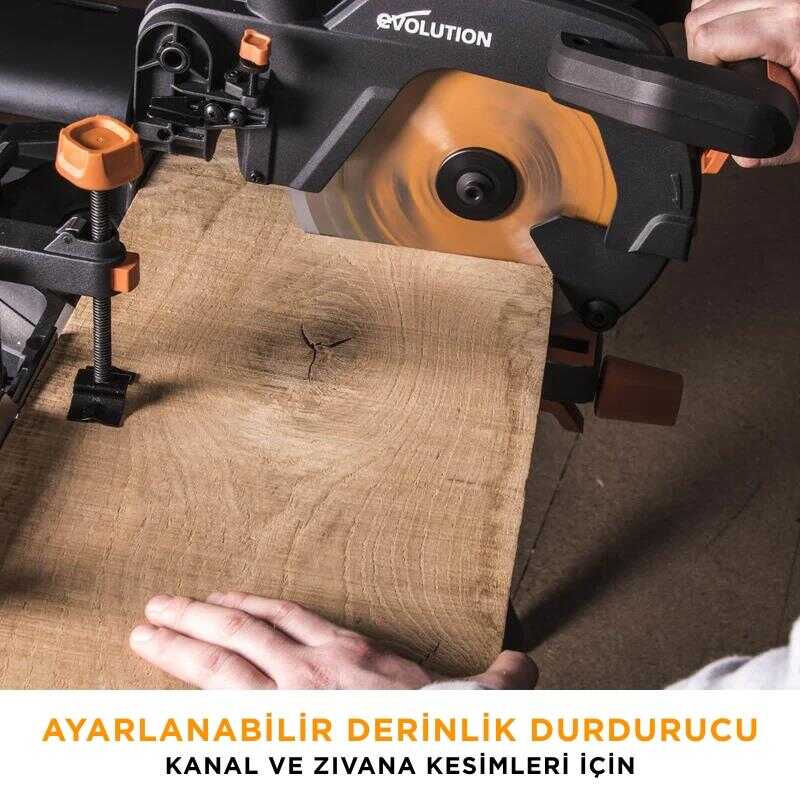

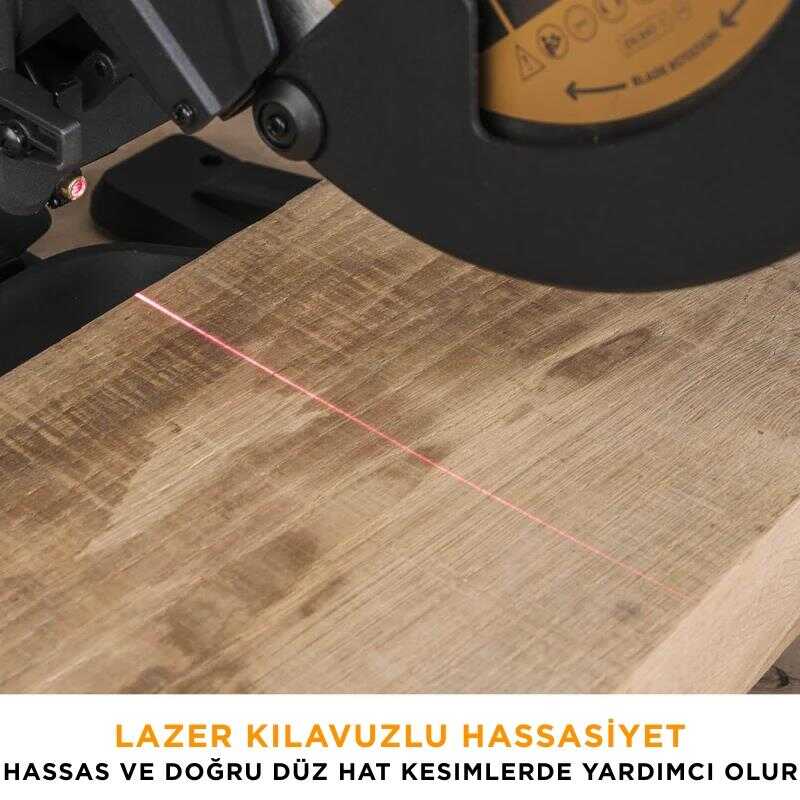

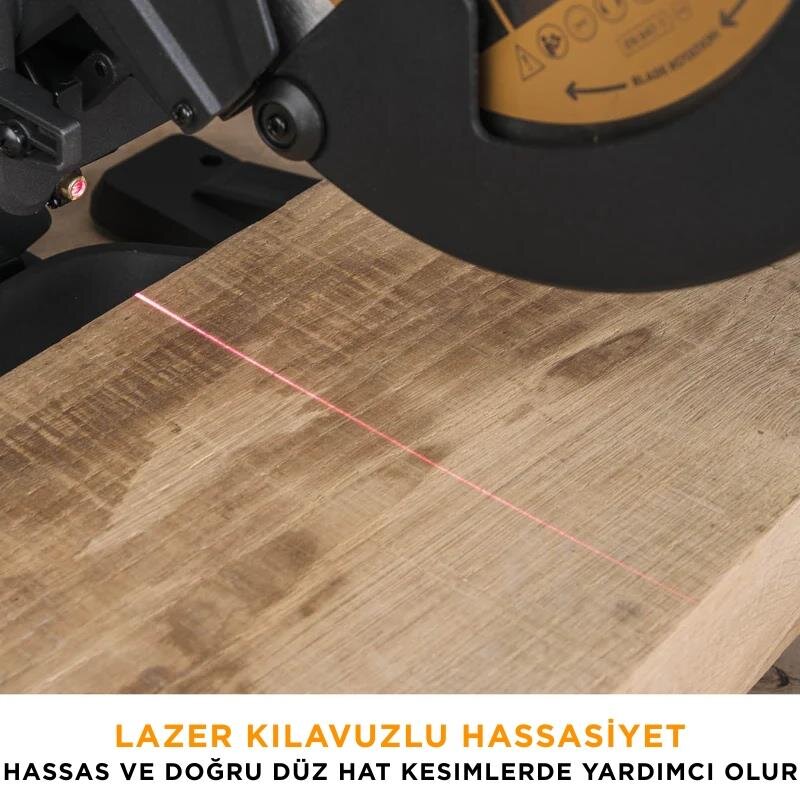

● Accurate cutting with 300mm sliding functionality, adjustable depth of cut and laser precision guidance.
● Smooth, square, reliable bevel and mitre cuts every time in a variety of materials.

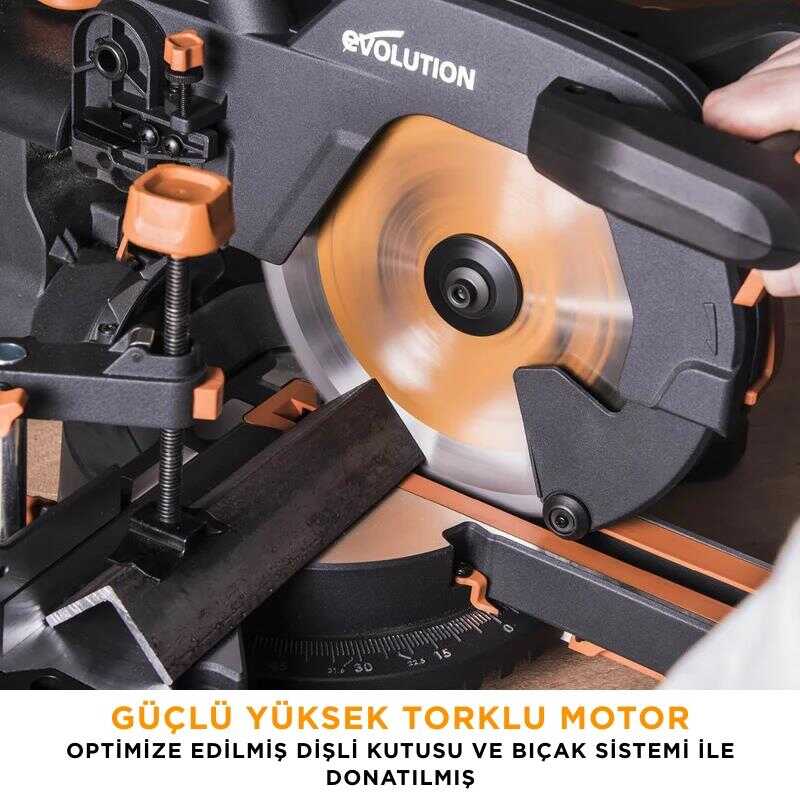

● Powerful 2000W (240v) / 1600W (110v) hi-torque, optimised gearbox and blade system increases motor and blade life to cut through a variety of materials with ease.

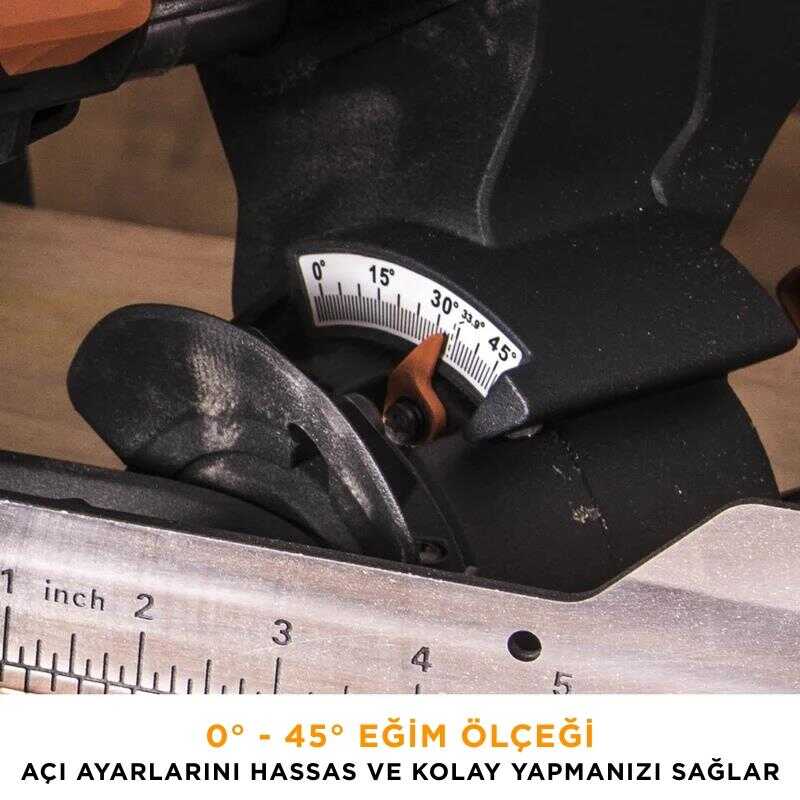

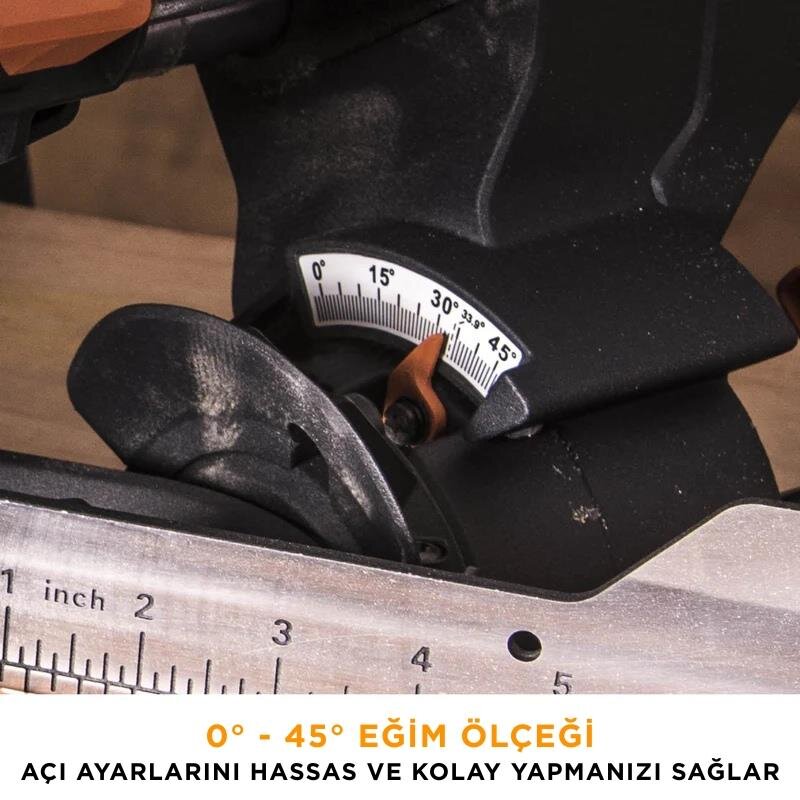

● Clean & consistent smooth cutting to within +/- 0.5˚ with 0° - 45° bevel tilt and 50˚ - 50˚ mitre angles with quick click mitre stops at 0˚, 15, 22.5, 30, and 45˚ both left & right.

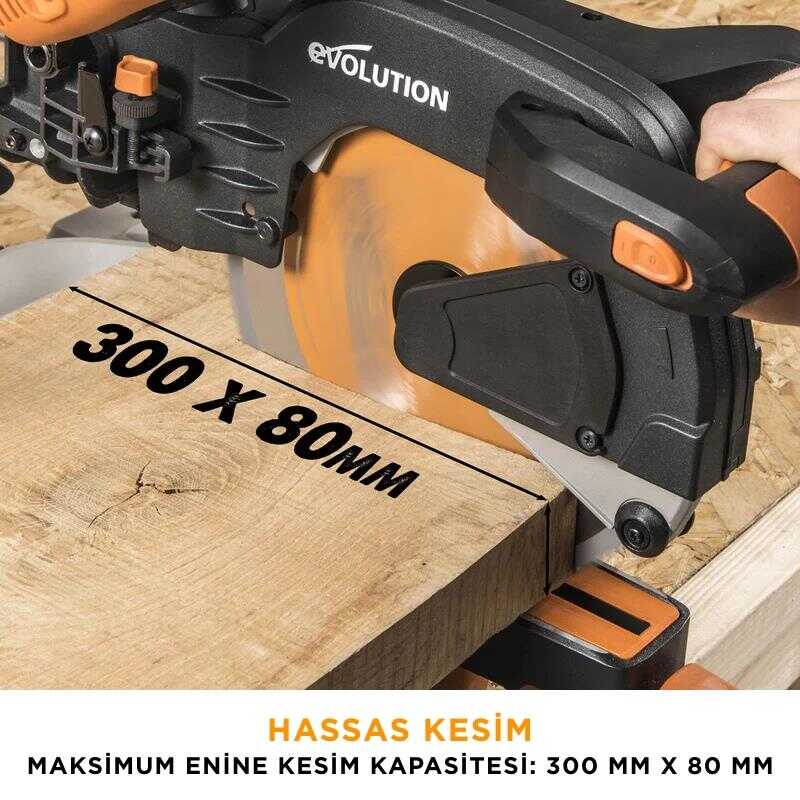

● Slice through skirting boards, cornices, boards, decking and more up to 300mm x 80mm.

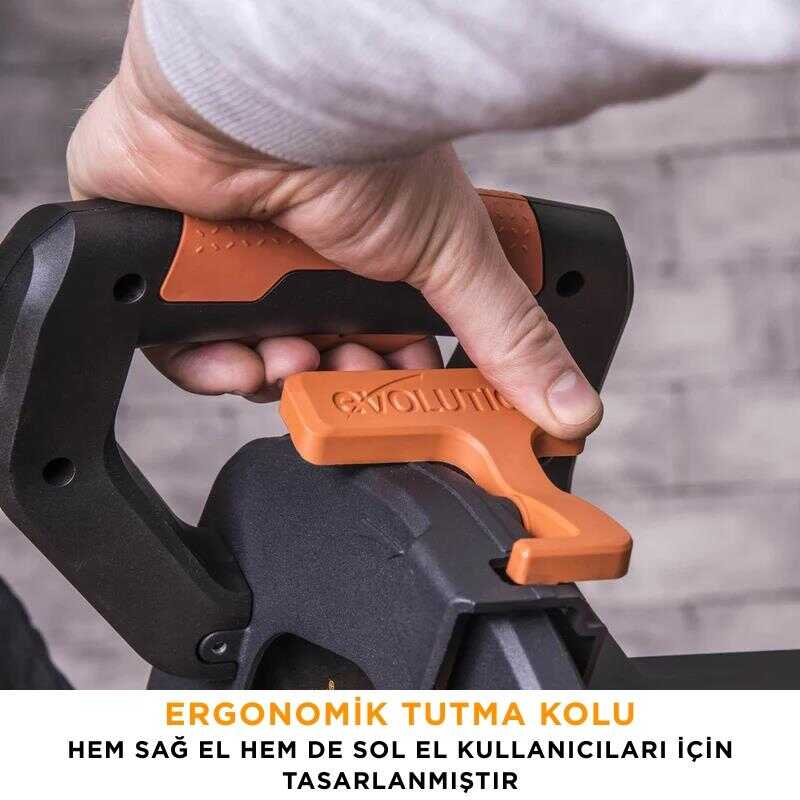

● Ambidextrous, ergonomic, horizontal trigger with comfortable grip combats repetitive strain.

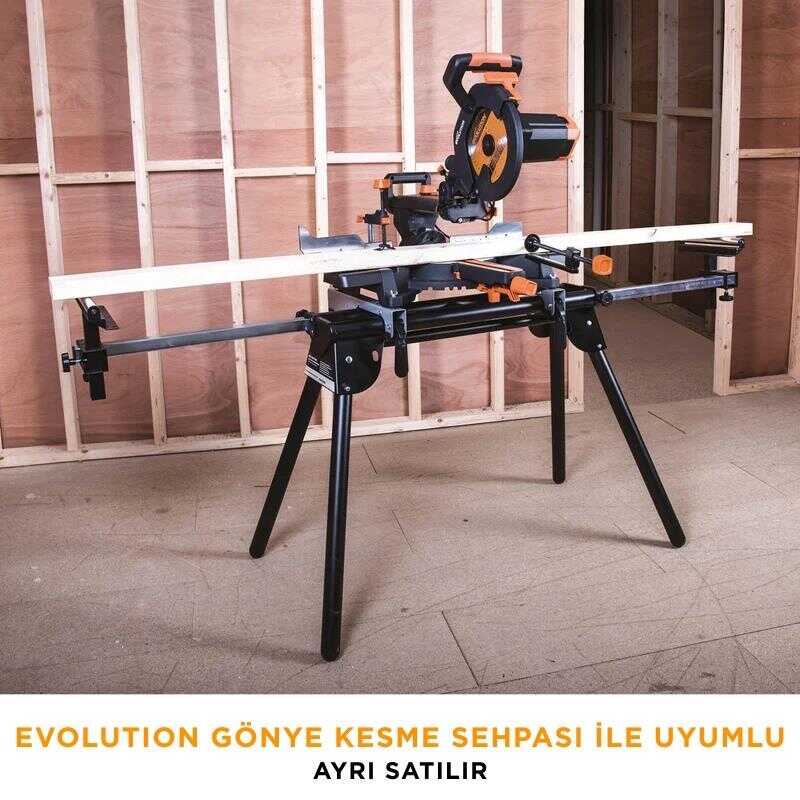

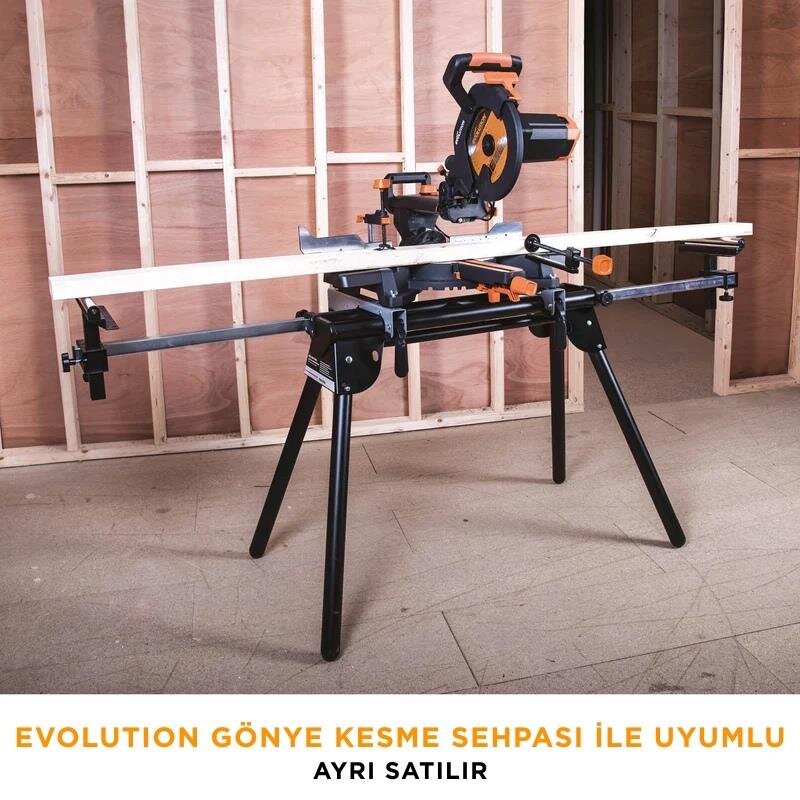

● Compatible with Evolution's Mitre Saw Stand allows you full control to cut accurate repeated lengths on wide and long materials with ease.

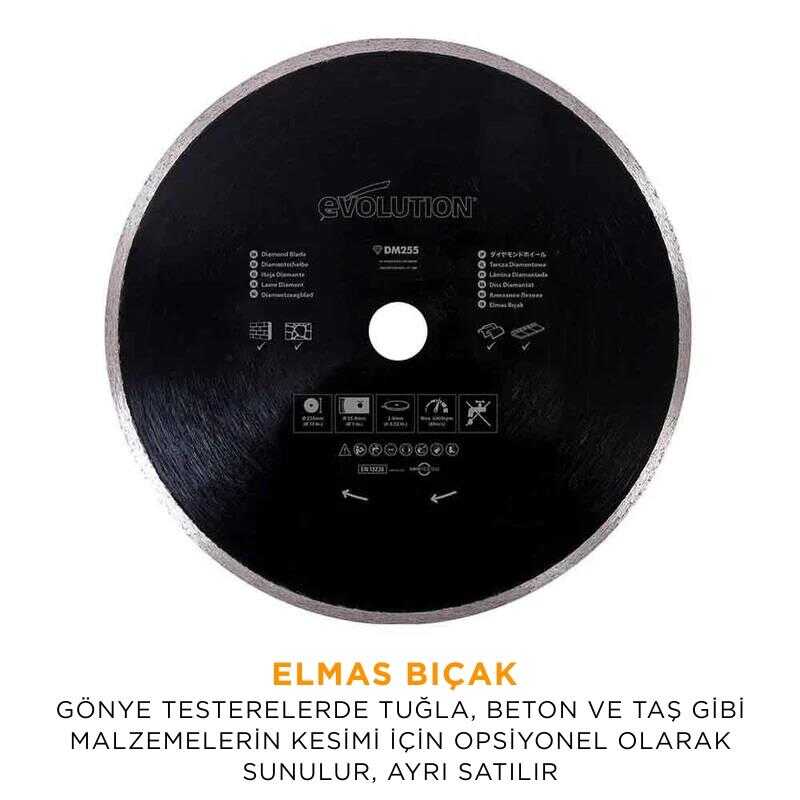

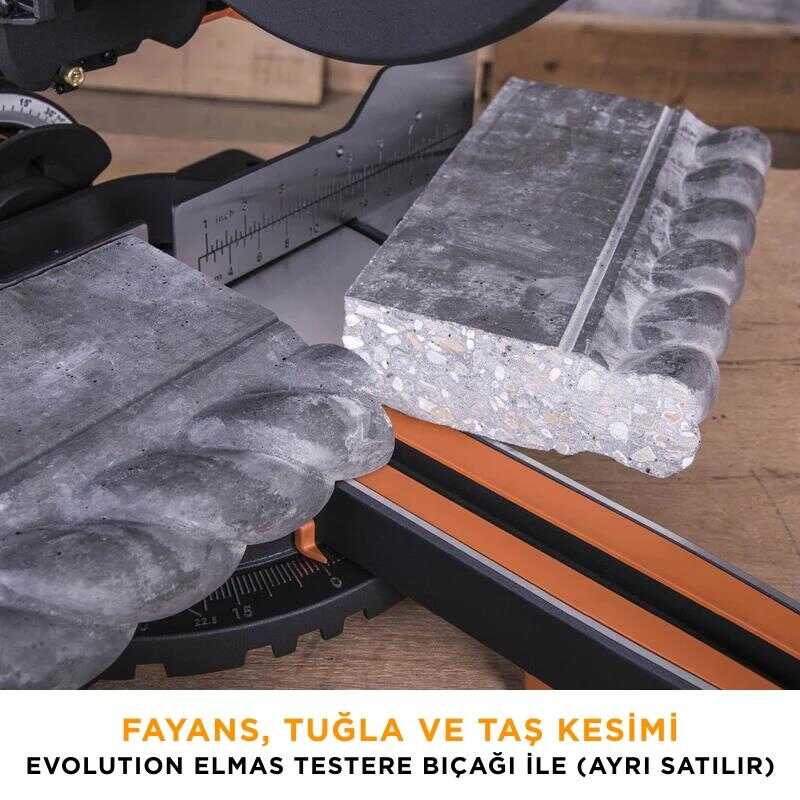

● The Evolution 255mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).

PLUS+ Features

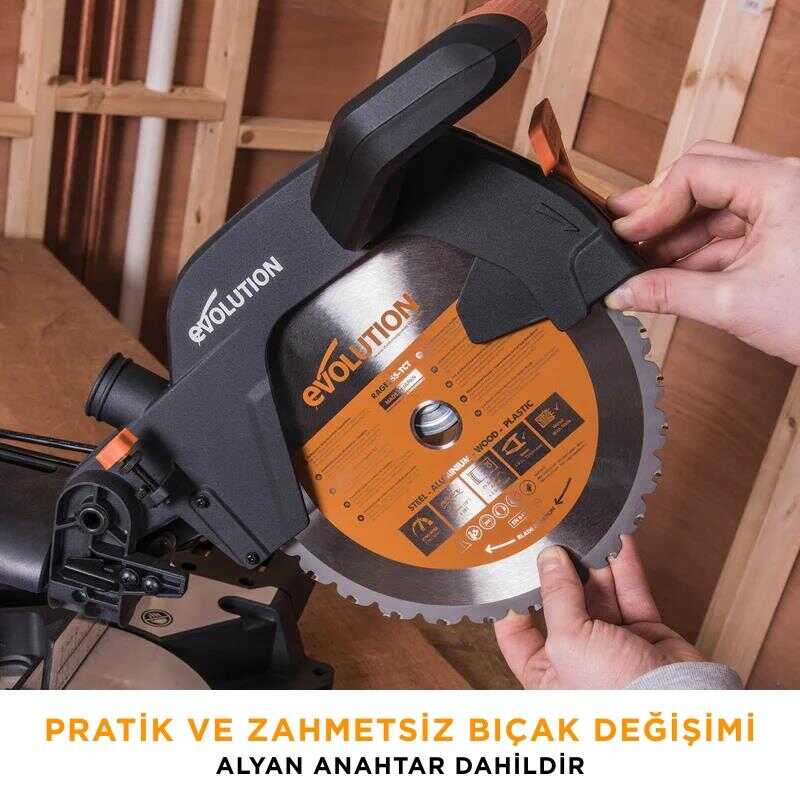

● Premium Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included for long-life, multi-material cutting.

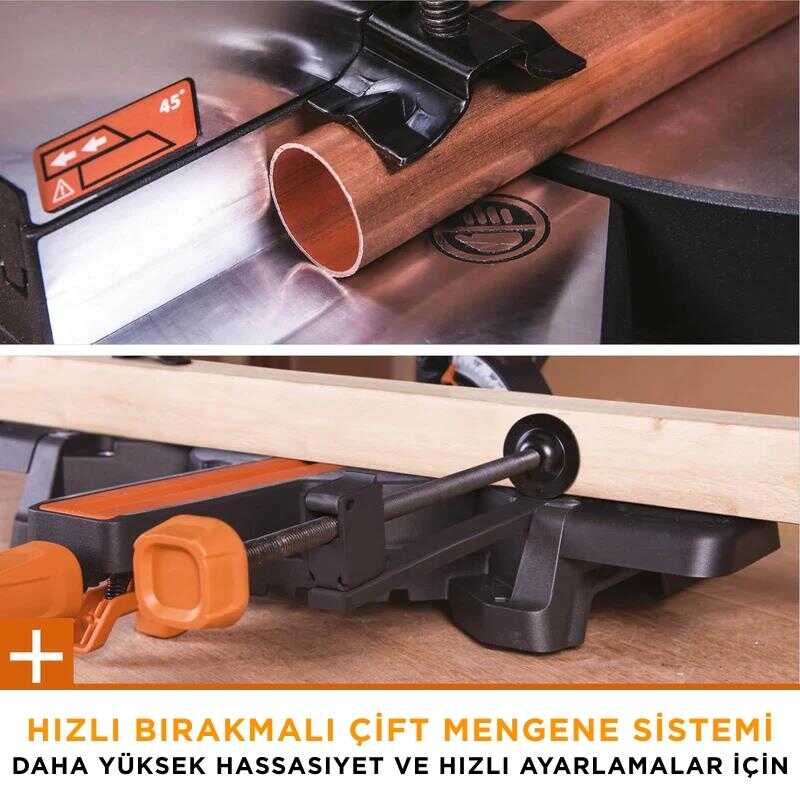

● Dual Quick-Release clamps included for additional accuracy & faster adjustments.

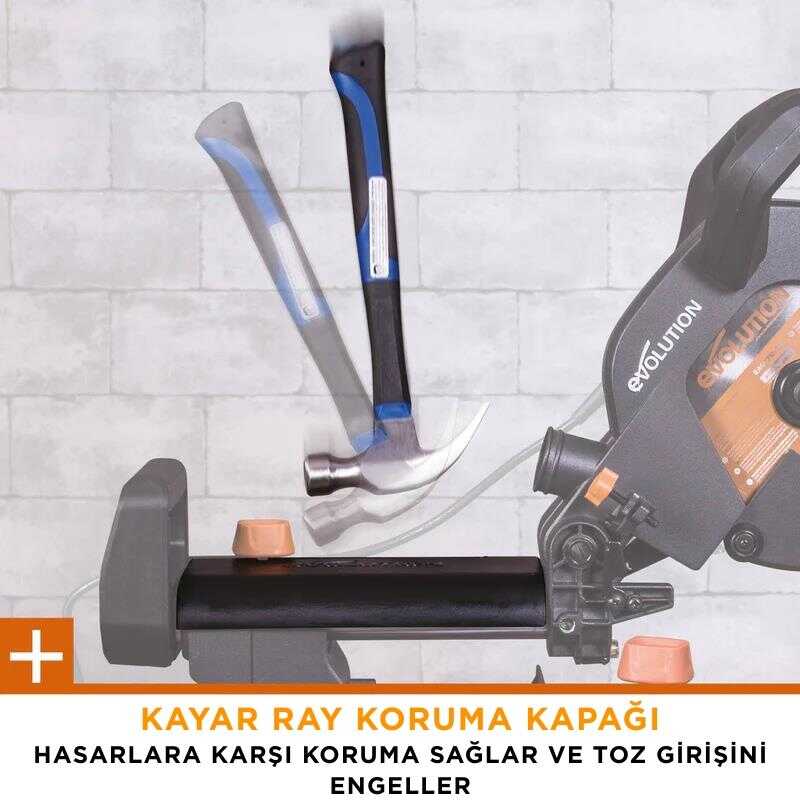

● Slide rail protector included protects against damage & prevents dust ingress.

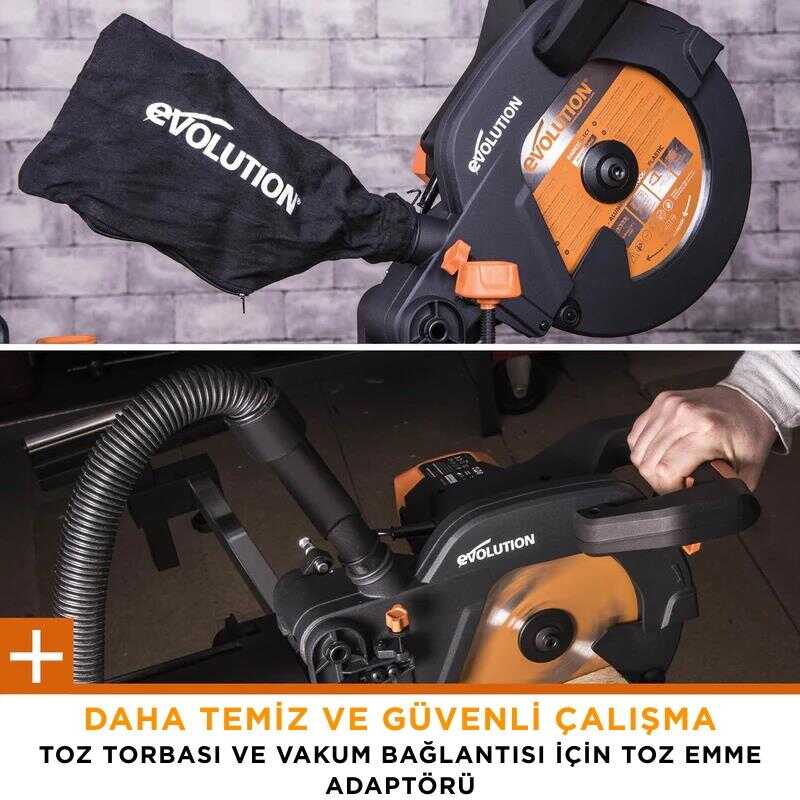

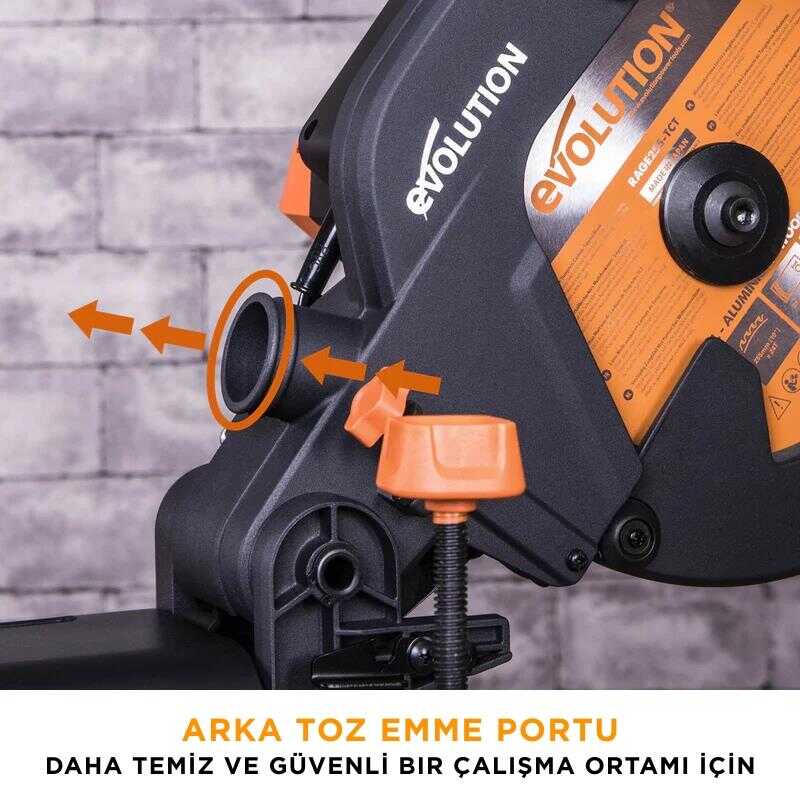

● Cleaner & safer working environment with dust collection bag & dust port adaptor for use with vacuum extraction.

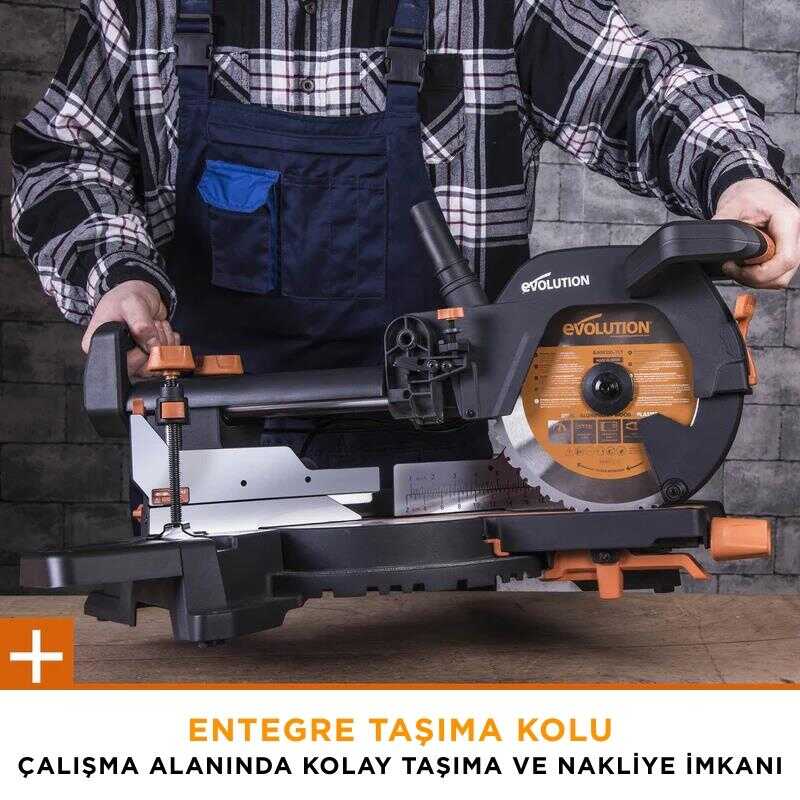

● Integrated carry handles - easy to carry & transport around the workplace.

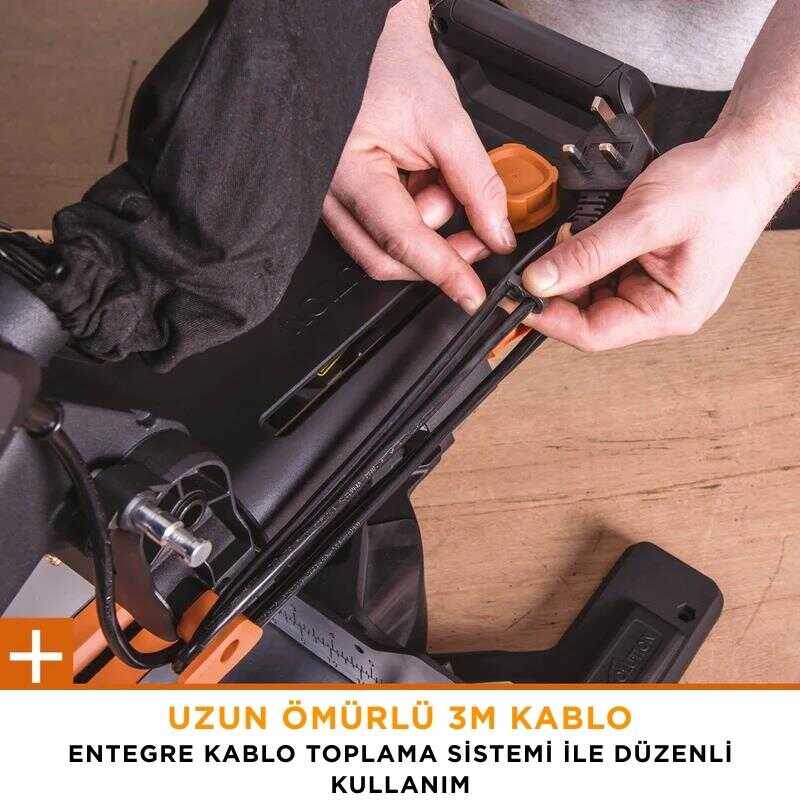

● 3m power cable reduces the need for extension leads.

Specifications
● Motor (240V 50Hz): 2000W
● Speed No Load: 2500 min-1
● Max. Mitre: 50° - 50°
● Max. Bevel (Left): 45°
● Blade Guard: Cast Aluminium
● Cable Length: 3m
● Blade Dia.: 255mm
● No. of Teeth: 28
● Bore: 25.4mm
● Kerf: 2mm

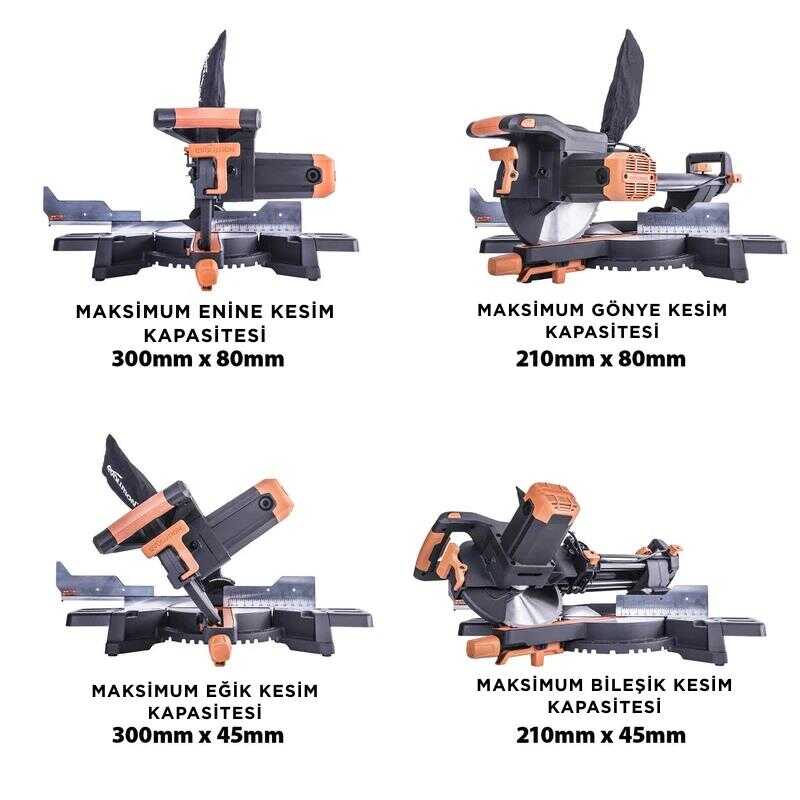

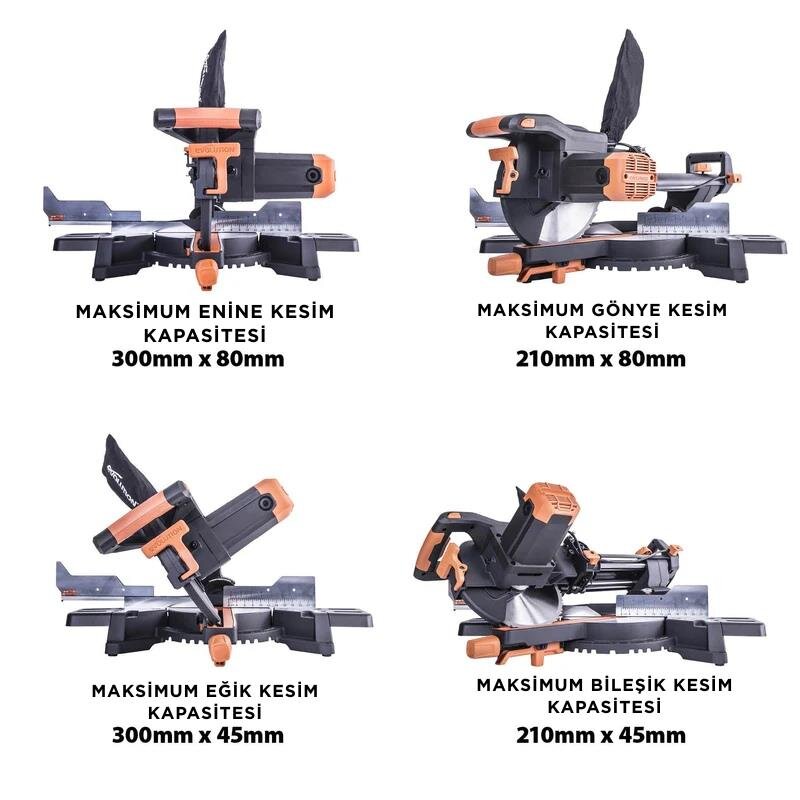

● Max. Cross Cut (0° x 0°): 300mm x 80mm
● Max. Bevel Cut (0° x 45°): 300mm x 45mm
● Max. Mitre Cut (45° x 0°): 210mm x 80mm
● Max. Compound Cut (45° x 45°): 210mm x 45mm
● Mild Steel Plate (Max. Thickness): 6mm
● Mild Steel Box Section (Max. Wall Thickness): 3mm
● Product Dimensions: 360mm x 705mm x 730mm (with saw head down)
● Packaging Dimensions: 365mm x 565mm x 520mm
● Product Weight: 15.3 kg
● Packaged Weight: 18.5 kg
● Sound Pressure Level LPA: 110V: 95.8 dB(A) / 220-240V: 95.8dB(A)
● Sound Power Level LWA: 110V: 108.8 dB(A) / 220-240V: 108.8dB(A)
● Uncertainty K: KpA & KWA: K=3 dB(A)
● Laser Class: Class 2
● Laser Source: Laser Diode
● Laser Output Power (Max): <1mW
● Wave Length (Nm): 650

Items Supplied
● Machine Table Extensions
● Double Ended Hex Key (M6 & M5)
● Rotary Table And Neck
● Cutting Head
● Carriage Slides
● Mitre Locking Knob
● Mains Cable Guide/Clamp
● Self Tapping Cap Screw
● Socket Headed Screws
● Cable Clamp Component
● Laser Lens Cap
● Double Ended Cable Clip
● Carry Handle
● Tall Fence
● Dust Port Adaptor
● Dust Collection Bag
● Slide Rail Protector
● 3pc Hold Down Clamp
● Front Clamp
● 255mm 28 Tooth Blade

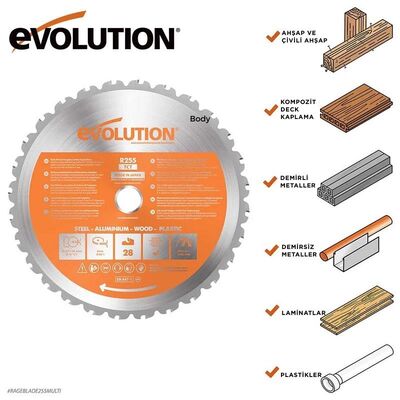

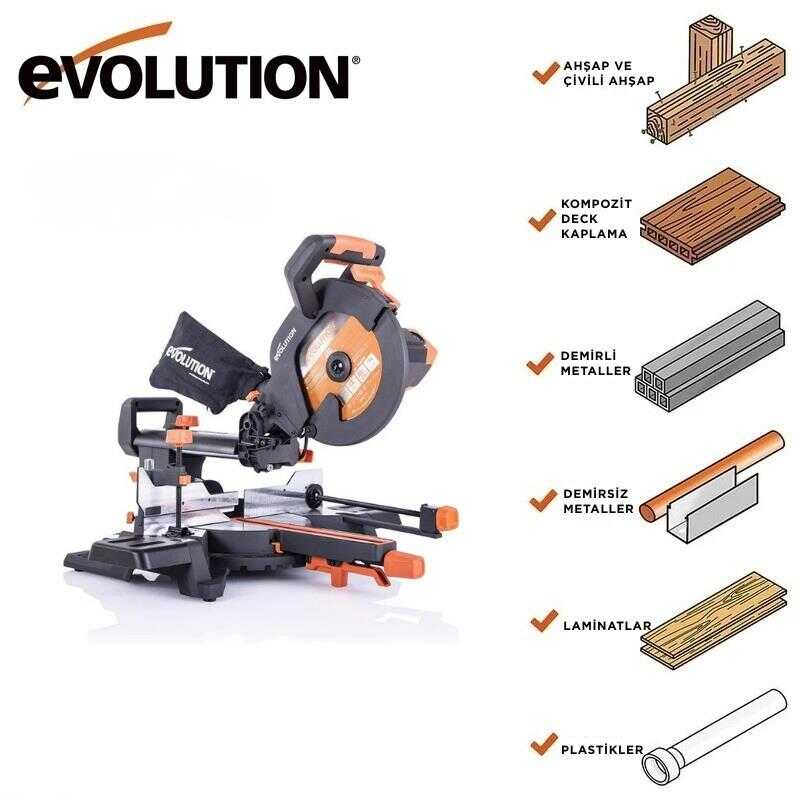

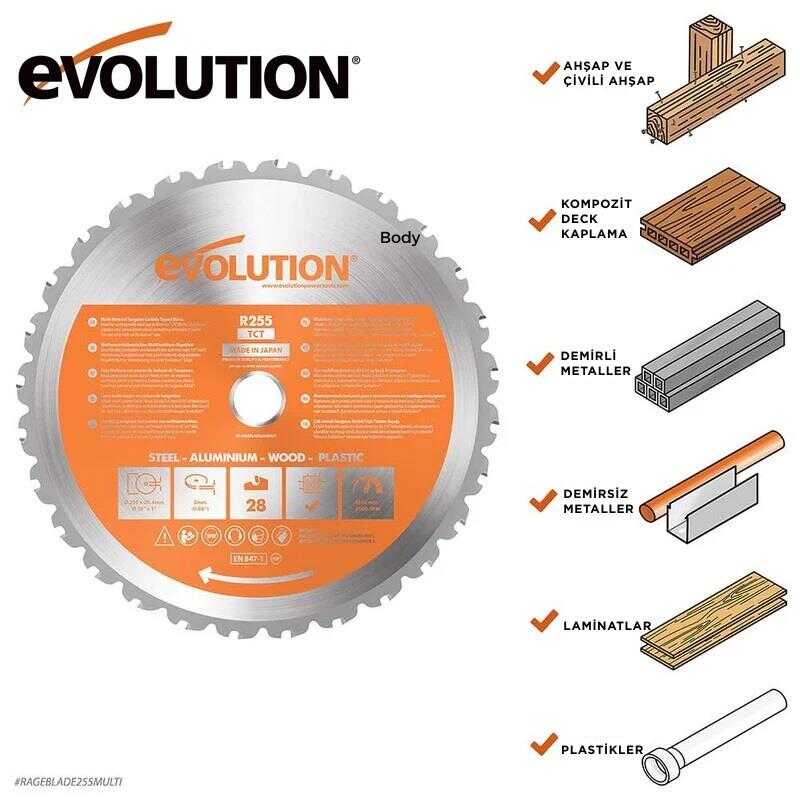

Multi-Material Cutting Technology
● Wood: Hardwood & tanalised decking, MDF laminates, mouldings, reclaimed wood with nails, scaffold boards & poles, stud-work.
● Ferrous Metal: Mild Steel, angled, box section, square tube, metal stud dry walling, rebar, plate (1/4 inch), unistrut.
● Non-Ferrous Metal: Aluminium, armoured cables, cable tray, copper, floor edgings, roof flashings, stair nosings.
● Plastic: Electrical conduit, plastic pipes, plexiglas, rubber & reinforced hoses, (WPC) Wood Plastic Composites.
● Not Recommended: Hardened high carbon, coated and stainless steel. Note: Cutting galvanised steel may reduce blade life. See our stainless steel cutting blades.

Compatible With:
255mm Multi-Material Cutting TCT Blade
255mm Diamond Masonry Cutting Blade
255mm Wood Cutting Blade
Mitre Saw Stand
