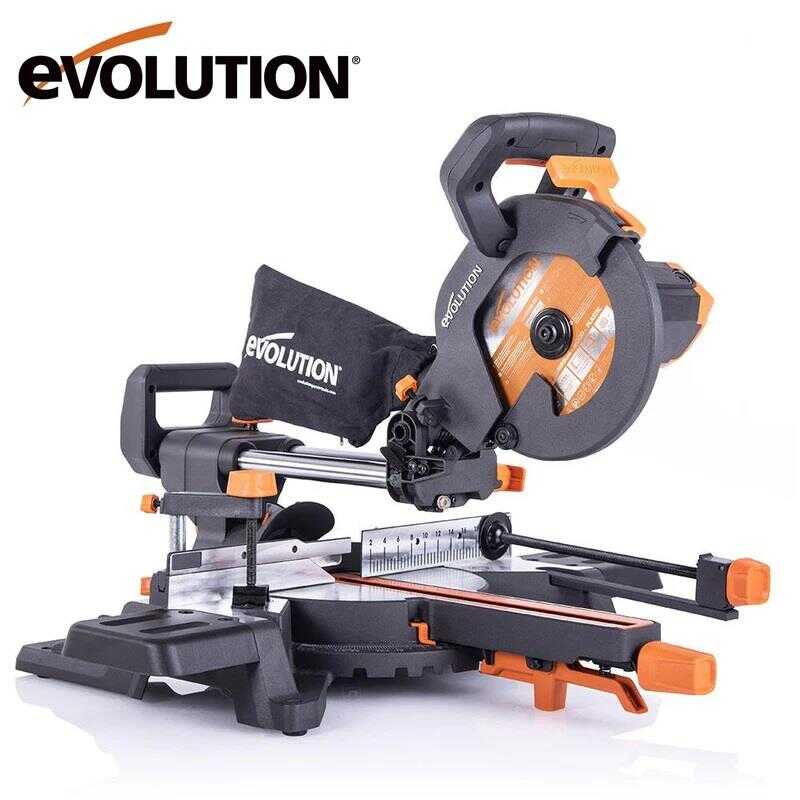

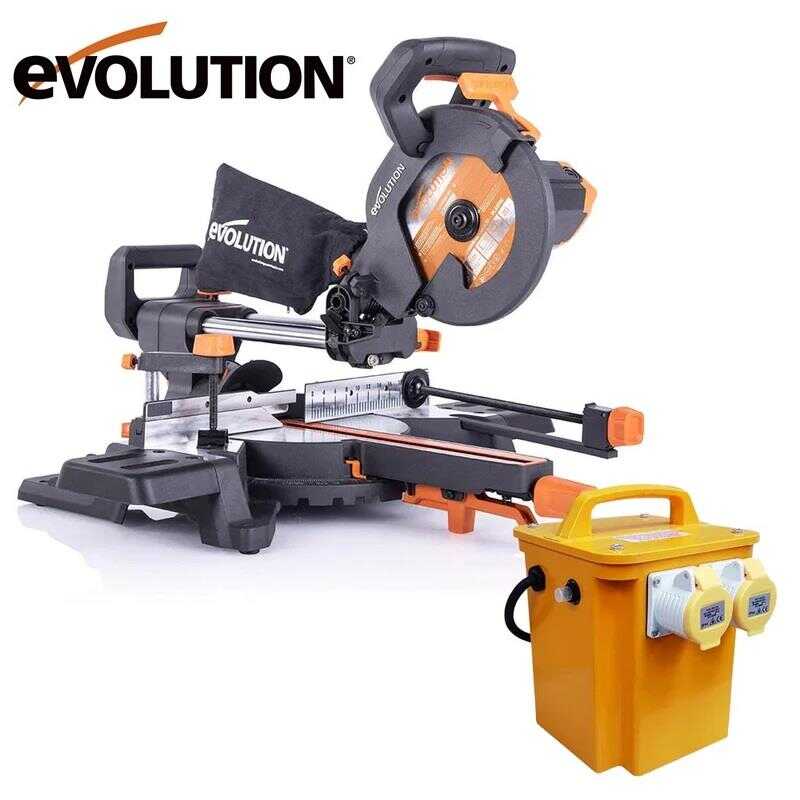

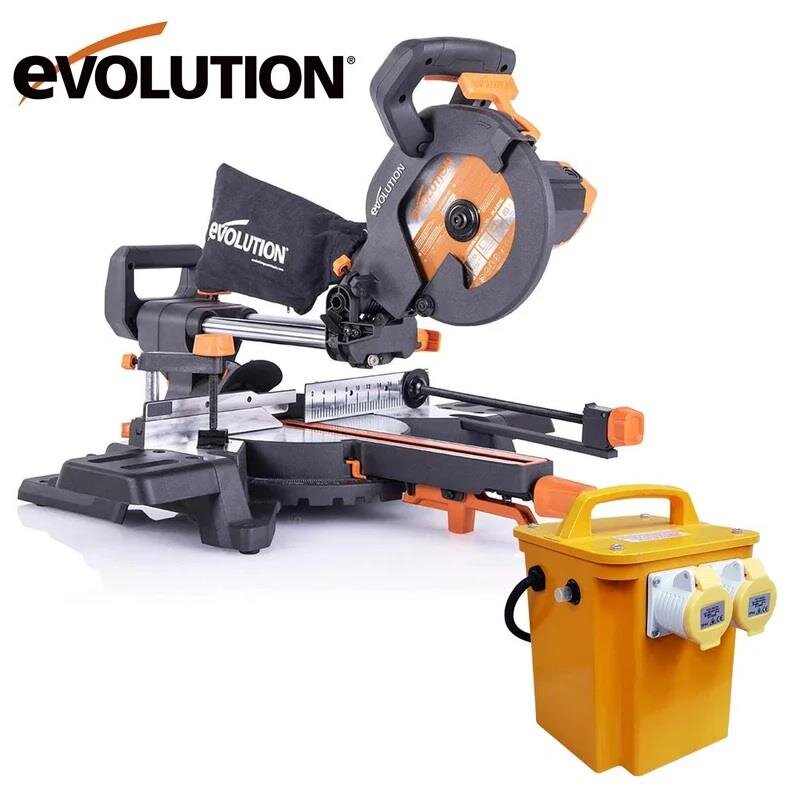

Evolution 048-0003A R210SMS+ Sliding Mitre Saw, 210mm

● Multi-Material cutting technology. One saw, one blade, cuts all.*

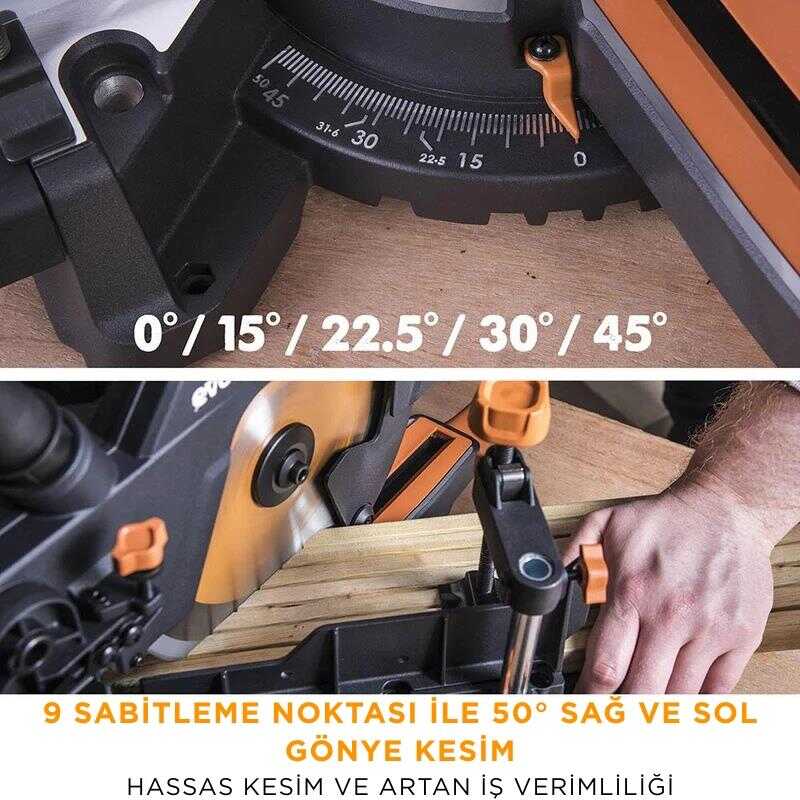

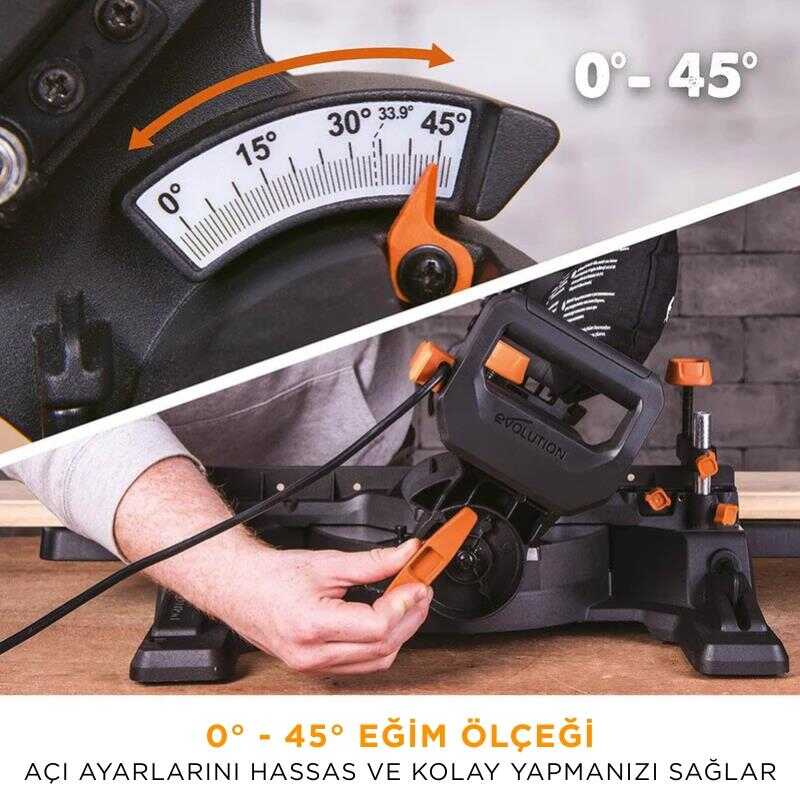

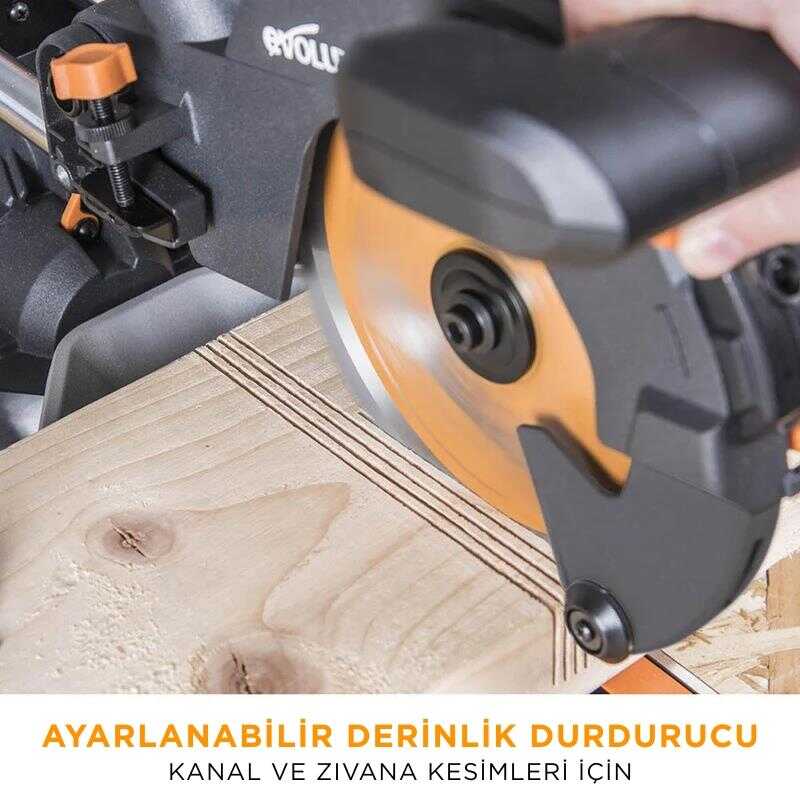

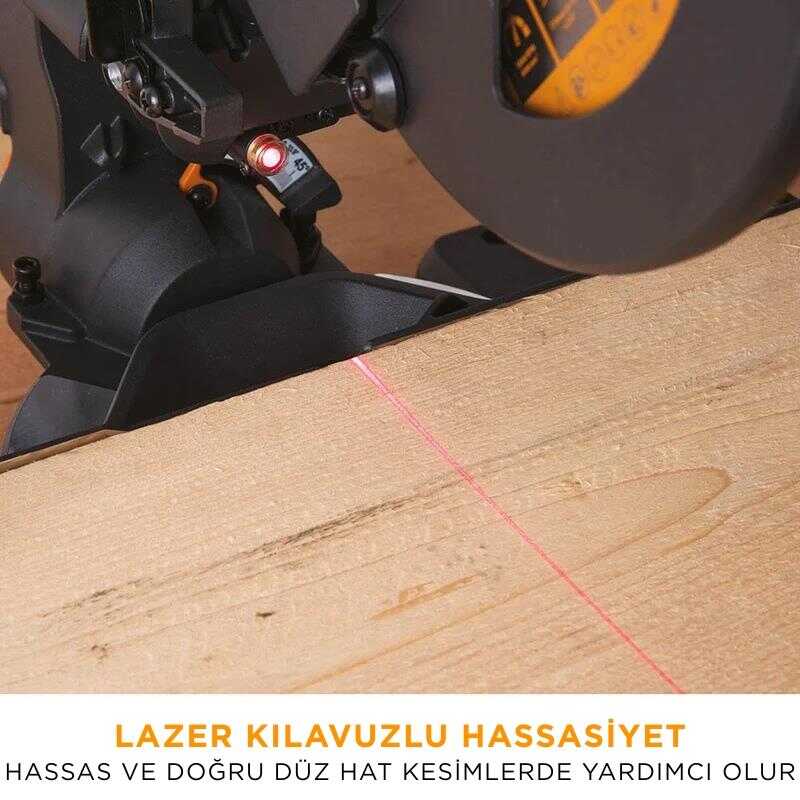

● Precision cutting with laser guidance, trench cut facility, 230mm slide, 0˚ - 45˚ bevel and 50° - 50° mitre settings.
● Reliability at the forefront of Evolution saws ensures smooth, square cutting every time in a variety of materials.

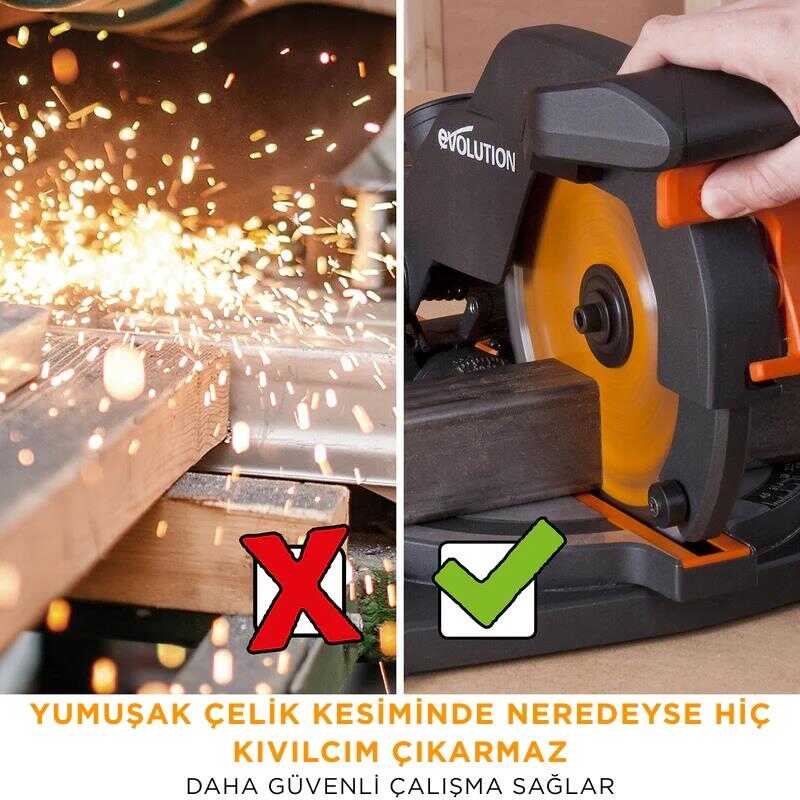

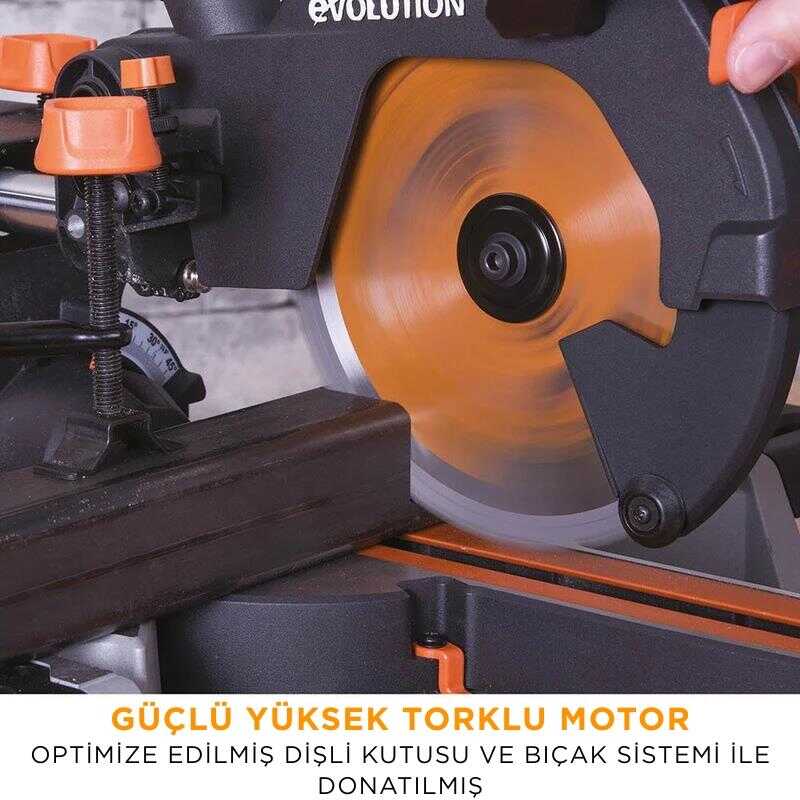

● 1500W of hi-torque power & optimised gearbox to cut mild steel, wood with embedded nails and more.
● Perform accurate Cross cuts, Mitre cuts, Bevel cuts and Compound cuts with adjustable precision settings.

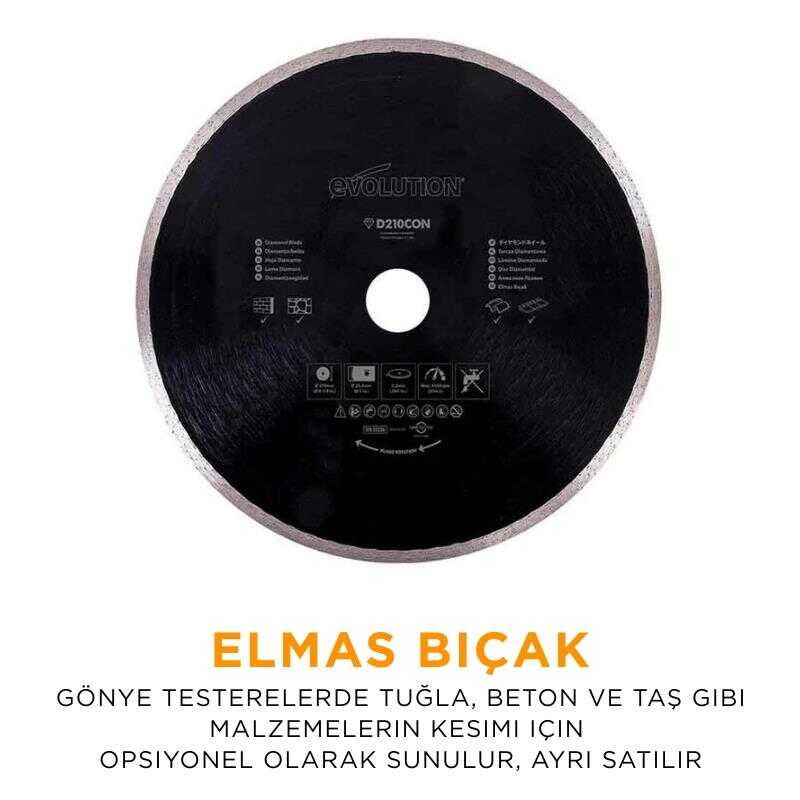

● Compatible with the Evolution Mitre Saw Stand and 210mm continuous rim diamond blade for cutting tiles, brick & ornamental stone, (sold separately).

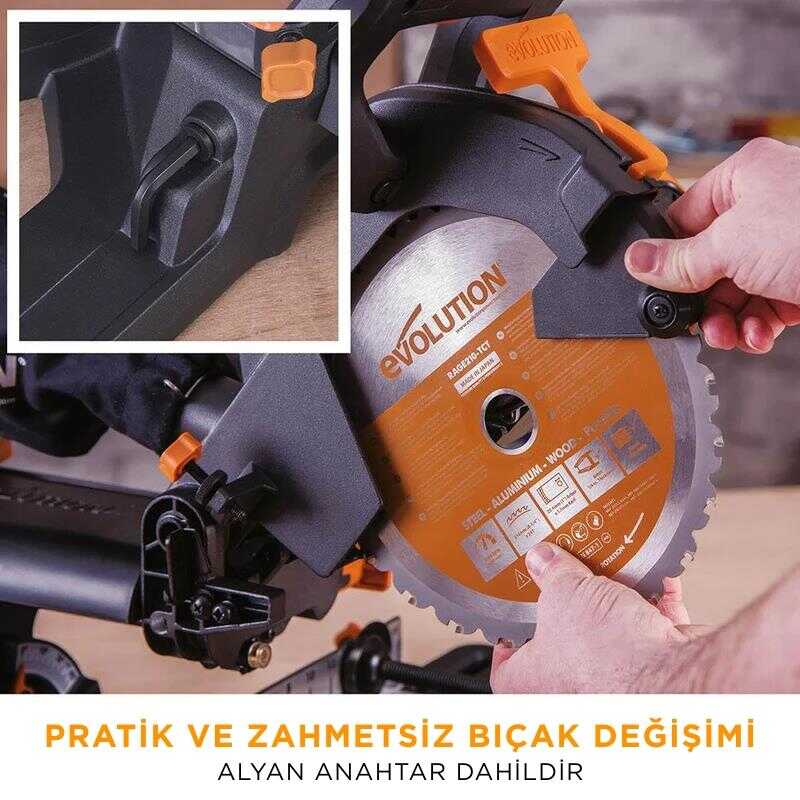

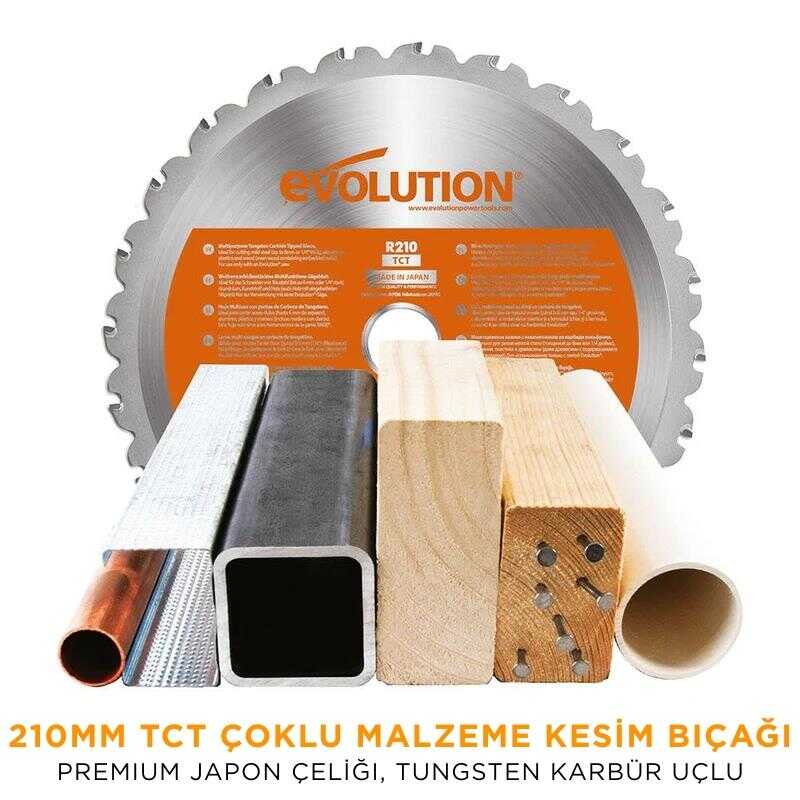

● Premium Japanese 24T Tungsten-Carbide-Tipped (TCT) 210mm blade included.
● Dual Quick-Release clamps included for additional accuracy & faster adjustments.
● Slide rail protector included protects against damage & prevents dust ingress.
● Cleaner & safer working environment with dust collection bag & dust port adaptor for use with vacuum extraction.

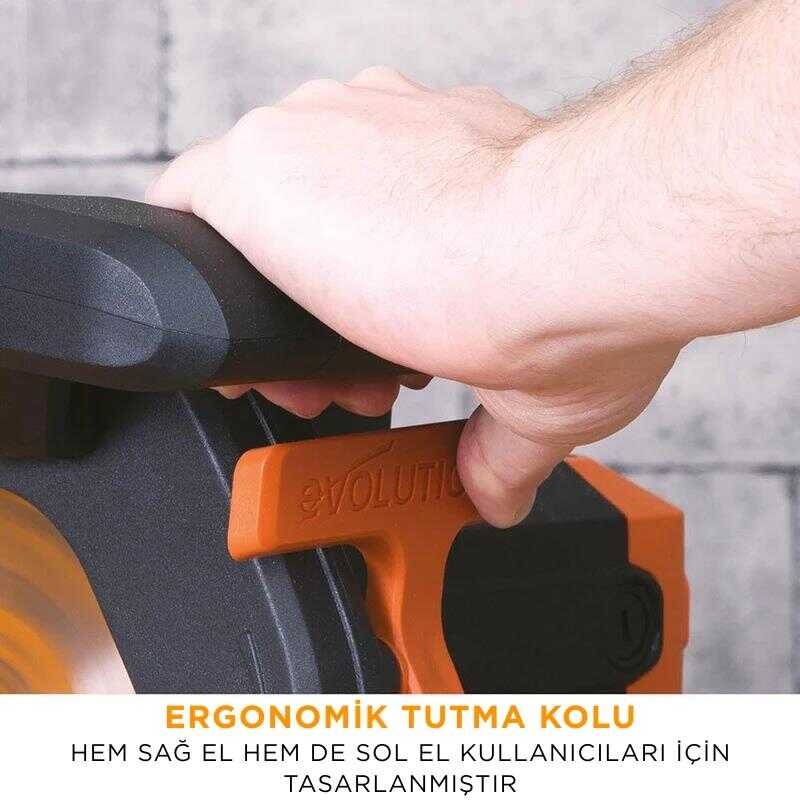

● Integrated carry handles - easy to carry & transport around the workplace.
● 3m power cable reduces the need for extension leads.

Specifications
Motor (240V 50Hz): 1500W
Speed No Load: 3750 min-1
Max. Mitre: 50° - 50°
Max. Bevel (Left): 45°
Blade Guard: Cast Aluminium
Cable Length: 3m
Blade Dia.: 210mm
No. of Teeth: 24
Bore: 25.4mm
Kerf: 1.7mm

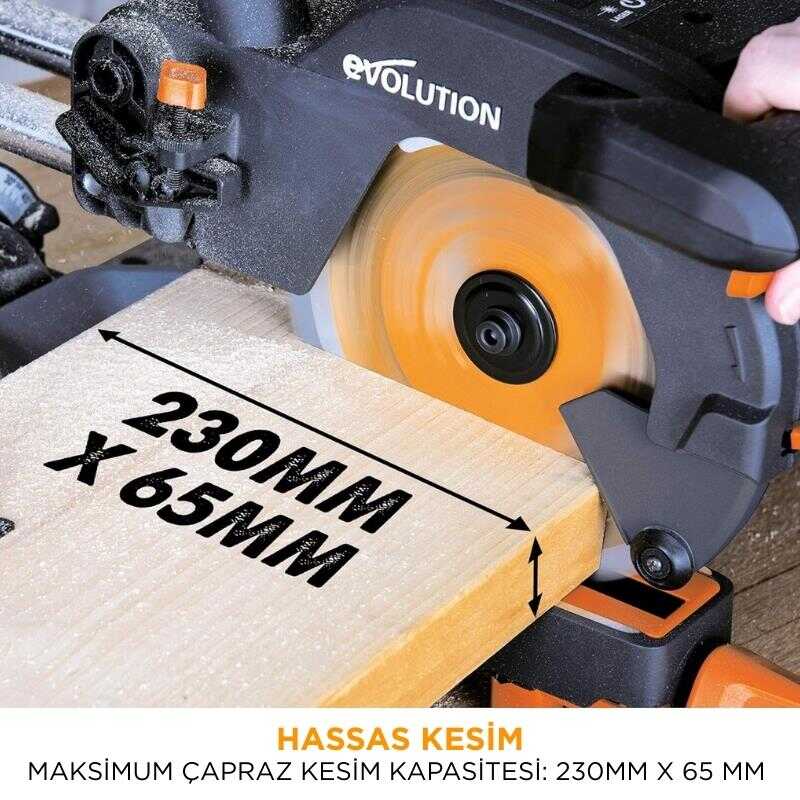

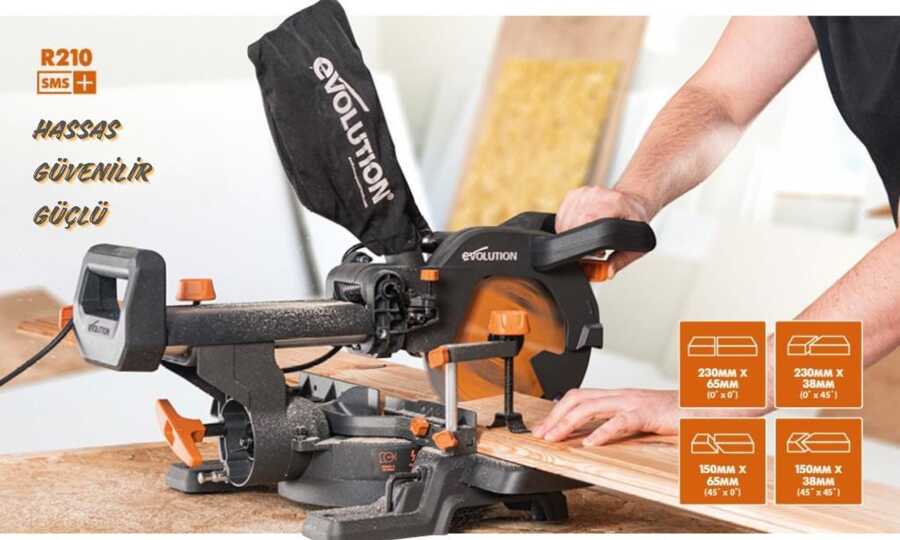

Max. Cross Cut (0° x 0°): 230mm x 65mm
Max. Bevel Cut (0° x 45°): 230mm x 38mm
Max. Mitre Cut (45° x 0°): 150mm x 65mm
Max. Compound Cut (45° x 45°): 150mm x 38mm
Mild Steel Plate (Max. Thickness): 6mm
Mild Steel Box Section (Max. Wall Thickness): 3mm
Product Dimensions: 314mm x 575mm x 610mm (with saw head down)
Packaging Dimensions: 475mm x 315mm x 435mm
Product Weight: 11.2 kg
Packaged Weight: 13.8 kg
Sound Pressure Level LPA: 220-240V: 96.5dB(A)
Sound Power Level LWA: 220-240V: 109.5dB(A)
Uncertainty K: KpA & KWA: K=3 dB(A)
Laser Class: Class 2
Laser Source: Laser Diode
Laser Output Power (Max): <1mW
Wave Length (Nm): 650

Items Supplied
● 24T Multi-Material TCT Blade
● 3pc Hold Down Clamp
● Machine Table Extensions
● Dust Collection Bag
● Dust Port Adaptor
● Front Clamp
● Rear Carry Handle
● Double Ended Hex Key (M6 & M4)
● Laser Lens Cap
● Sliding Rail Protector
● Front Clamp
● Rear Carry Handle
● 3m Cable

Compatible With:
● 210mm 24t Multi-Material Cutting TCT Blade
● 210mm 30t General Wood Cutting Blade
● 210mm 40t Fine Wood Cutting Blade
● 210mm Diamond Masonry Cutting Blade
● 210mm 20t Multi-Material Cutting TCT Blade
● Mitre Saw Stand

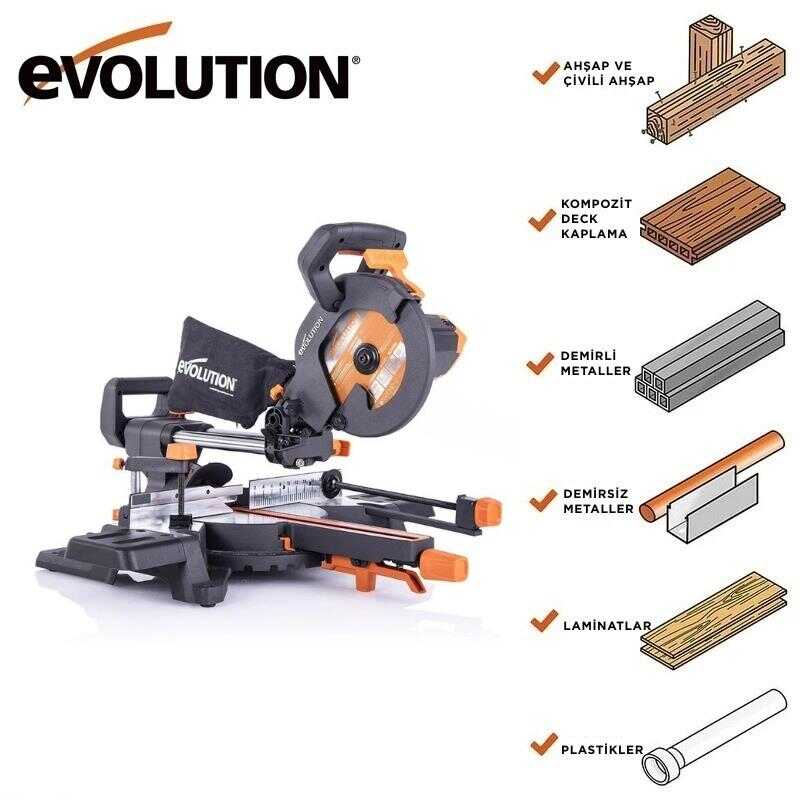

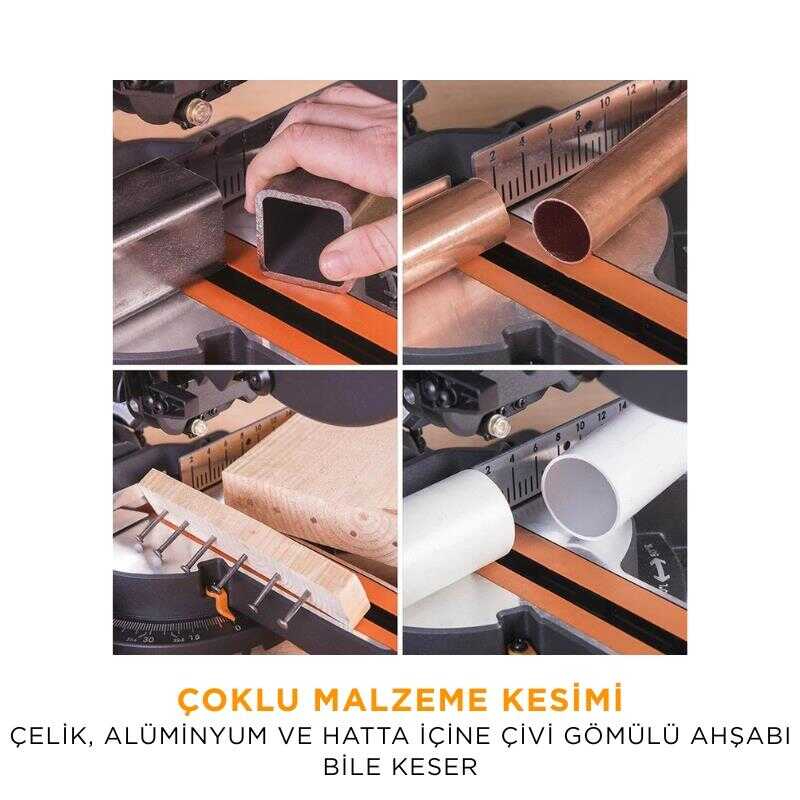

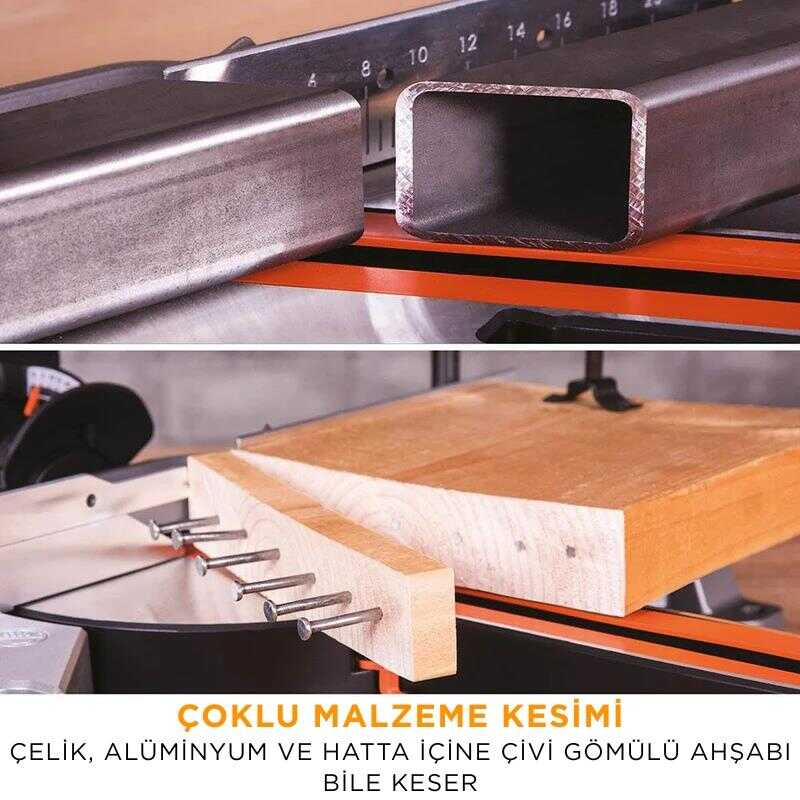

Multi-Material cutting technology.
● Wood: Hardwood & tanalised decking, MDF laminates, mouldings, reclaimed wood with nails, scaffold boards & poles, stud-work.

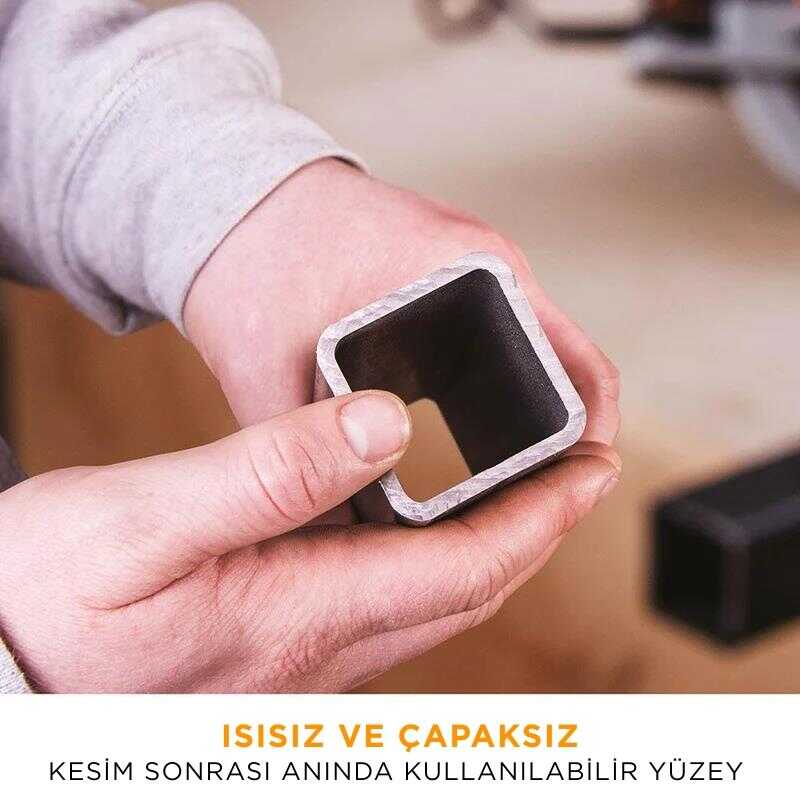

● Ferrous Metal: Mild Steel, angled, box section, square tube, metal stud dry walling, rebar, plate (1/4 inch), unistrut.
● Non-Ferrous Metal: Aluminium, armoured cables, cable tray, copper, floor edgings, roof flashings, stair nosings.
● Plastic: Electrical conduit, plastic pipes, plexiglas, rubber & reinforced hoses, (WPC) Wood Plastic Composites.
● Not Recommended: Hardened high carbon, coated and stainless steel. Note: Cutting galvanised steel may reduce blade life. See our stainless steel cutting blades.
